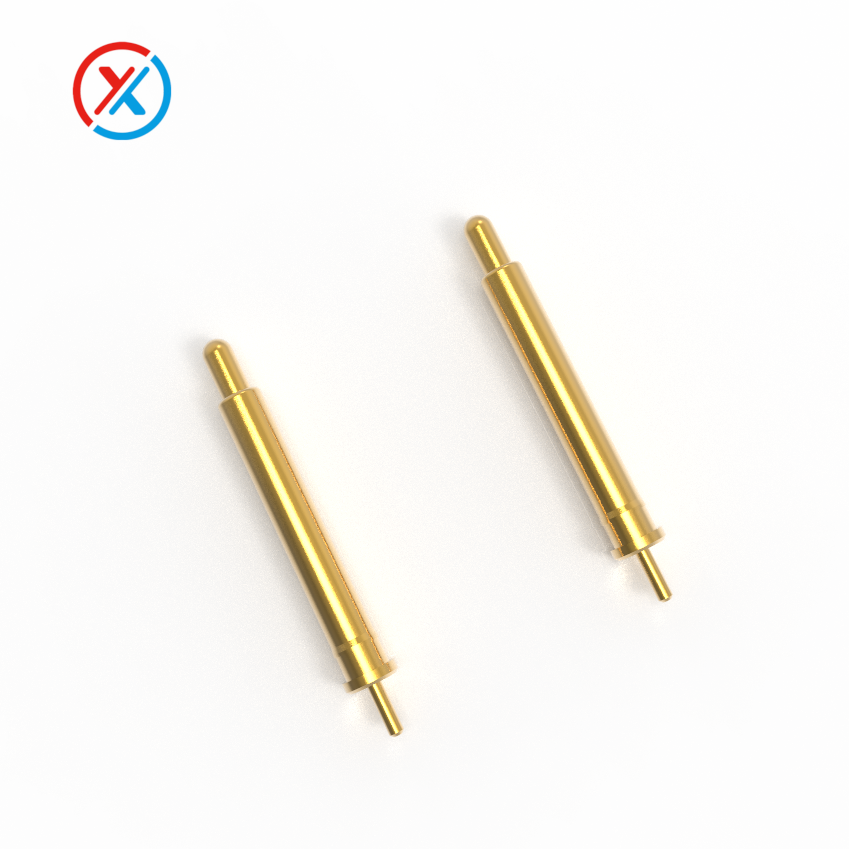

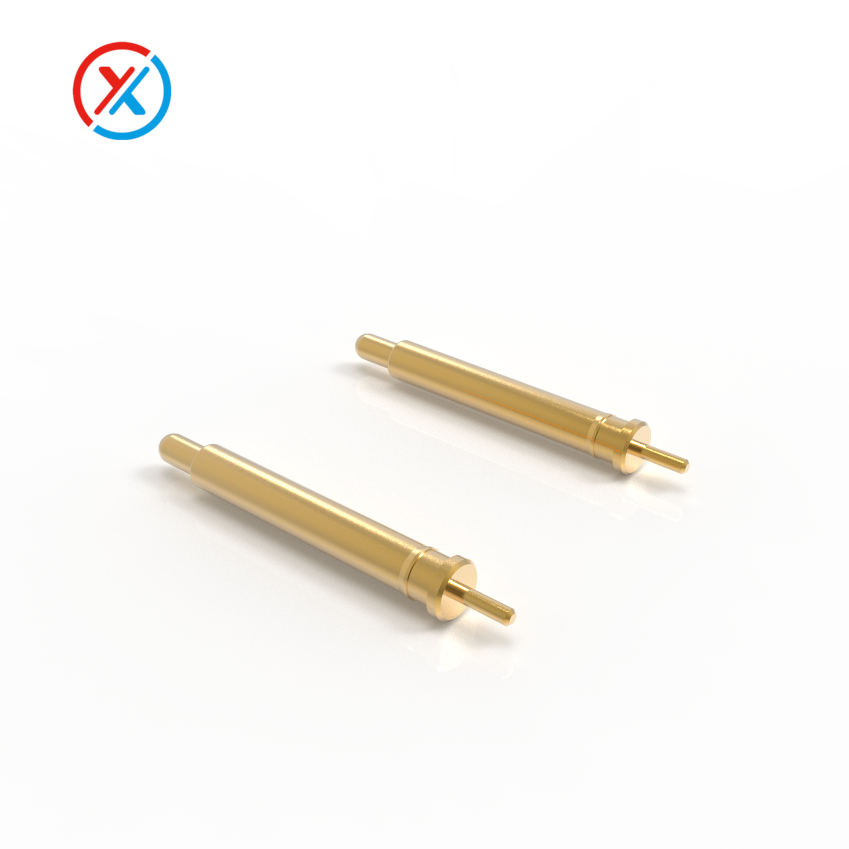

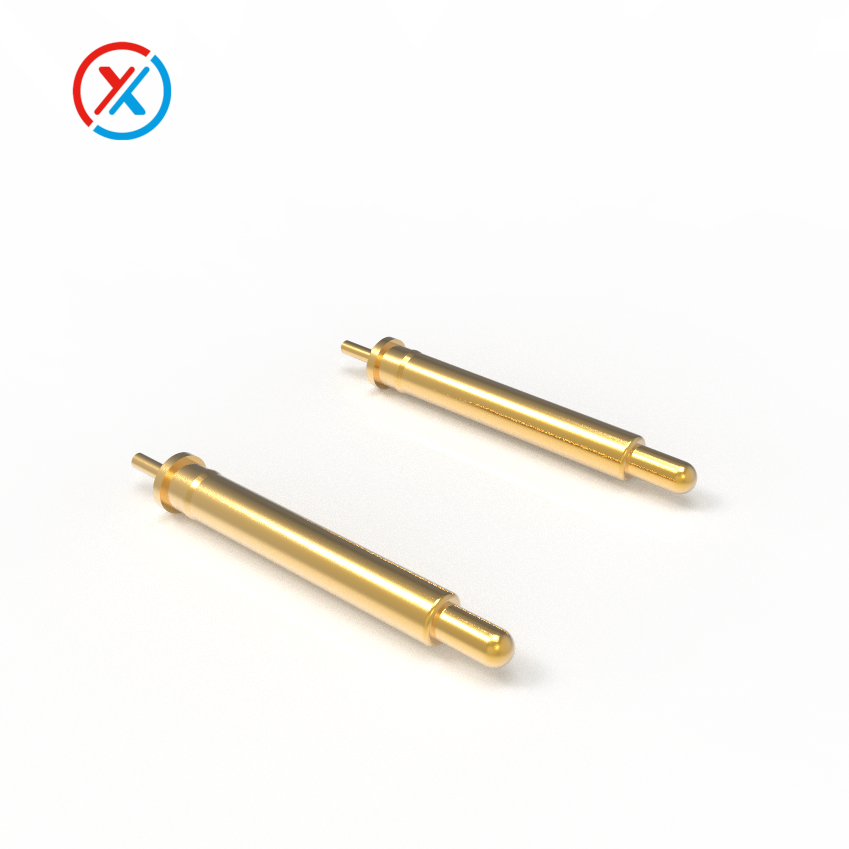

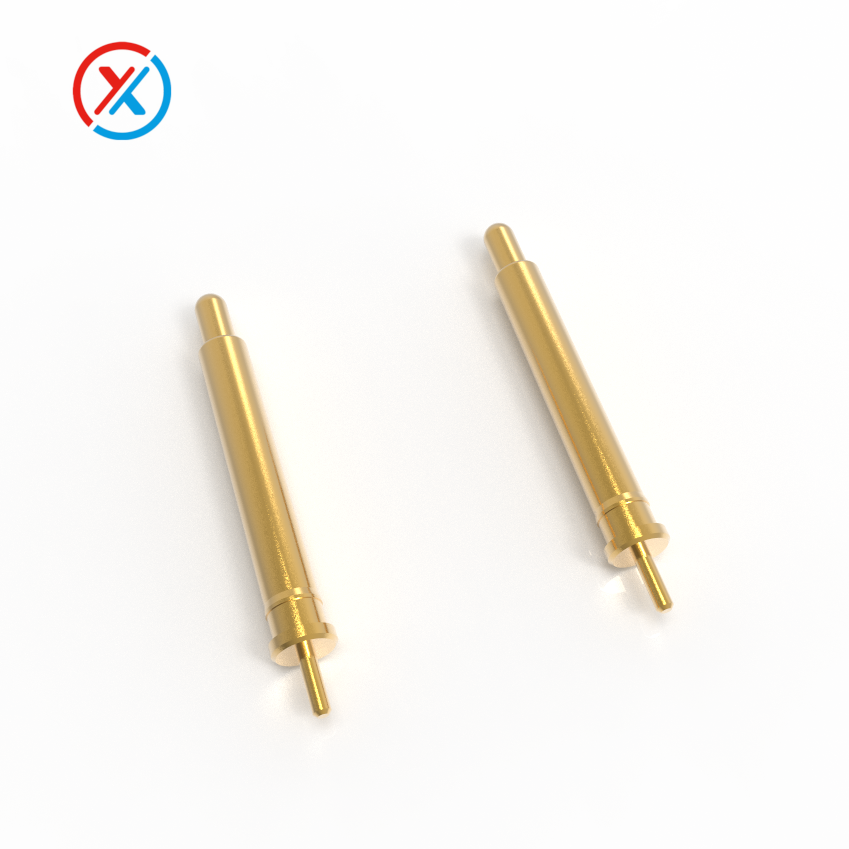

12mm Pogo Pines 3A/Diameter 1mm Brass Gilding High Quality
Product Name：3A pogo pin-RG 1003
Daily output: 500,000 pieces
Delivery time：5 to 15 days
E-mail: [email protected]
- Overview
- Inquiry
- Related Products
1.1mm diameter pogo pines
Micro Precision DIP Spring Pins - Reliable Connection Core for Miniaturized Devices
12mm ultra-thin spring pins designed for high-density PCBs, 1mm diameter brass gold-plated contacts (0.125um plating) achieve 3A stable current transmission, contact resistance ≤50mΩ, plug-in life of 20,000 times (EIA-364-09 standard verification). Halogen-free and lead-free materials are ROHS/REACH certified, compatible with EU EN 50581, US UL 94V-0 and Japanese JIS C 5101 regulations, and support 3-24V voltage flexible configuration.
3、What are the advantages of choosing our pogo pins
100% environmentally friendly materials that meet RoHs and REACH requirements.
Automatic riveting press assembly, automatic inspection and shipment.
Tolerances can be controlled to ±0.01mm.
Contact impedance ≤ 15m Ω.
The life span can reach more than 1000000 times.
No mold opening, convenient customization, cost saving.
The elasticity can be adjusted according to the requirements.
7-day flexible customized production cycle, simultaneous provision of EMC protection optimization solutions and failure analysis services, to help you build a zero-defect supply chain system at a lower overall cost. ISO-certified factory production, complete material reports, environmental certification and 3D drawings are provided with the goods to help customers quickly pass product compliance reviews.

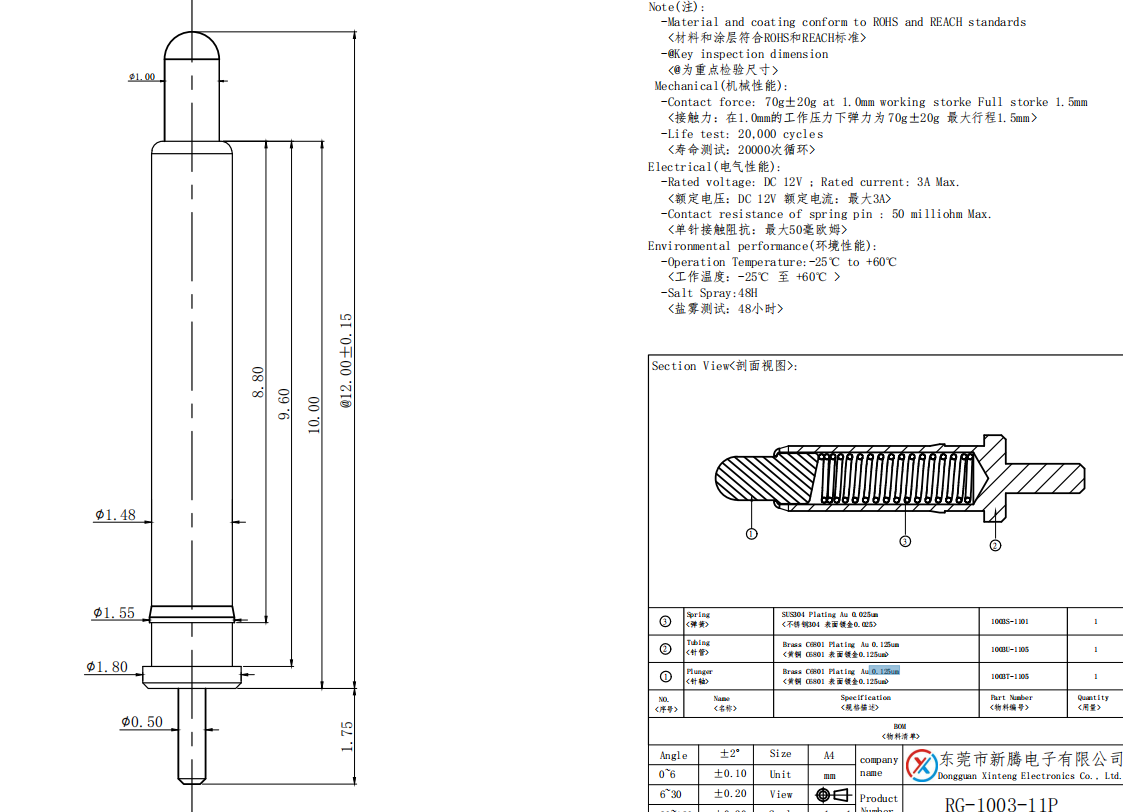

4、pogo pins parameters：
| ITEM | DATA #1 |
| Model | RG-1003 |
| Metallic materials | Brass C6801 |
| PIN electroplating | Customized to your needs |
| Rated current | 3A |
| Mechanical life | 20,000 cycle Min |
| Material and coating conform to ROHS and REACH standards | |
