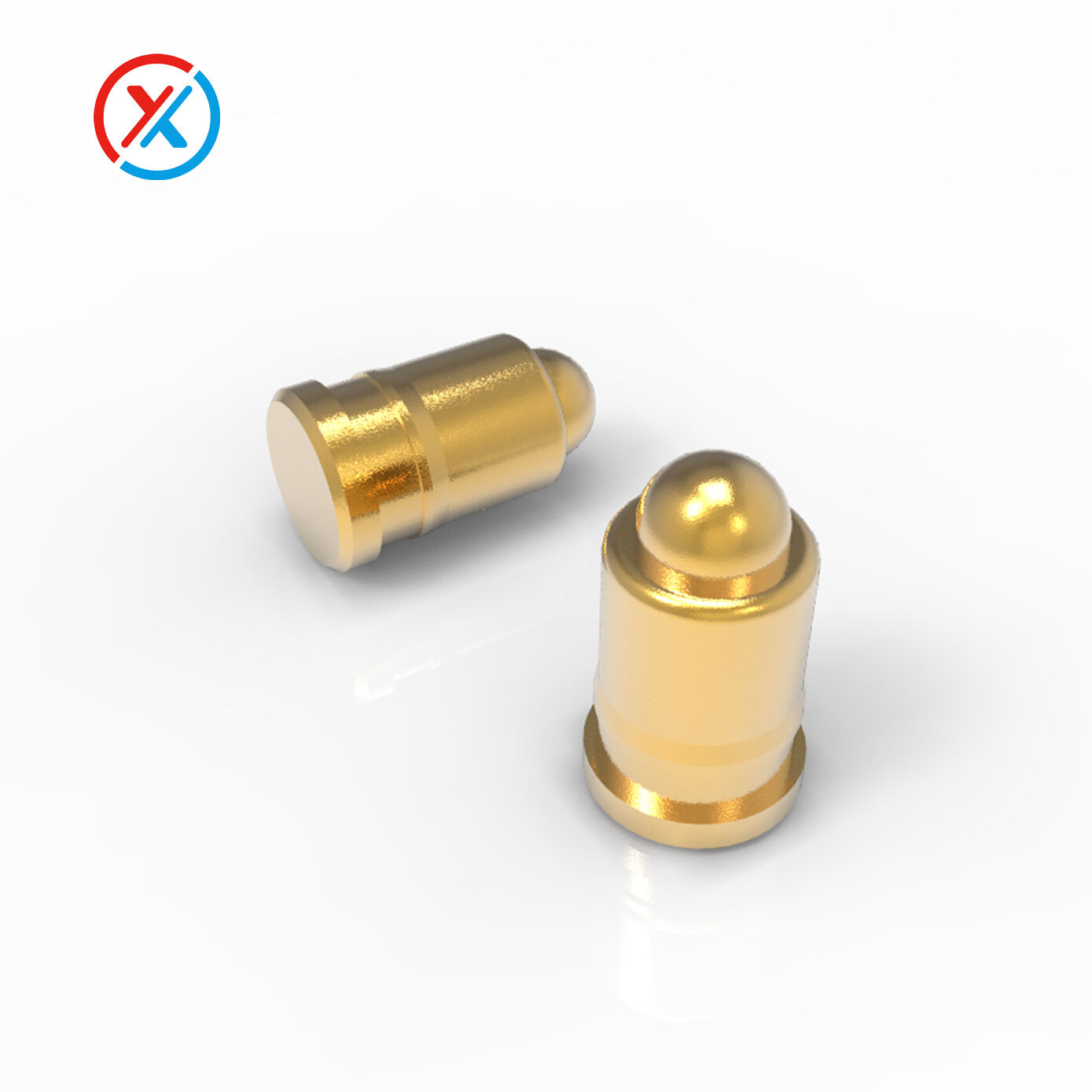

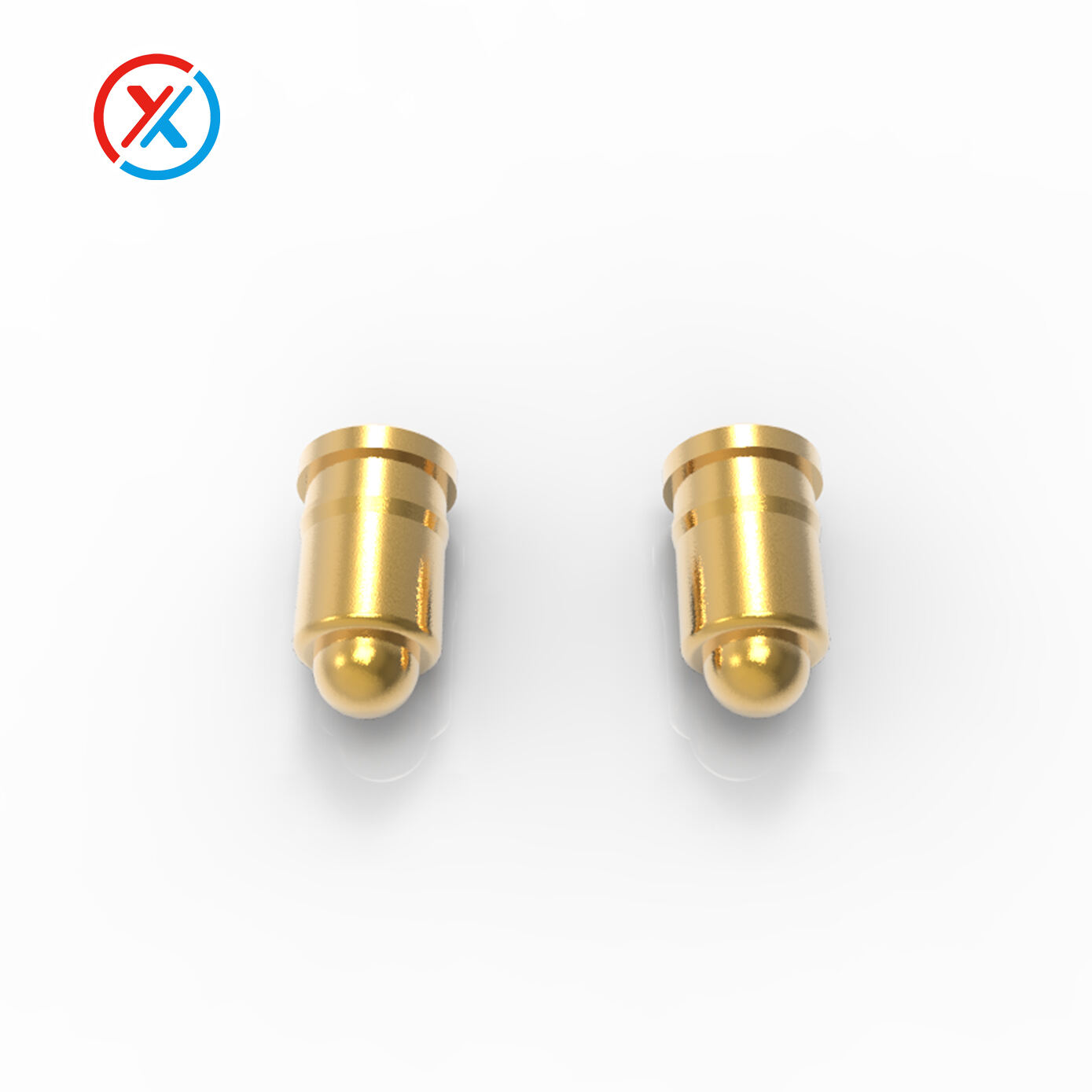

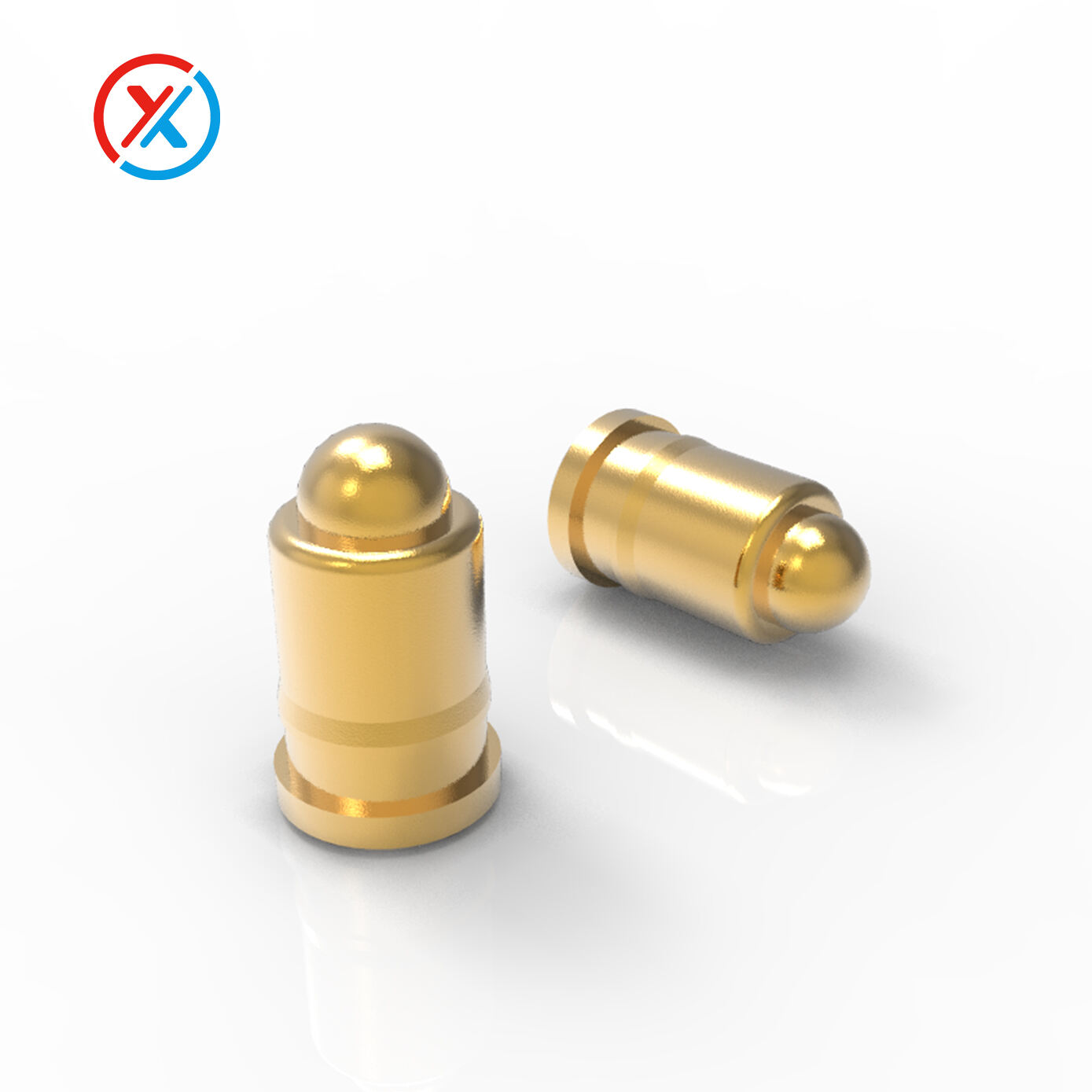

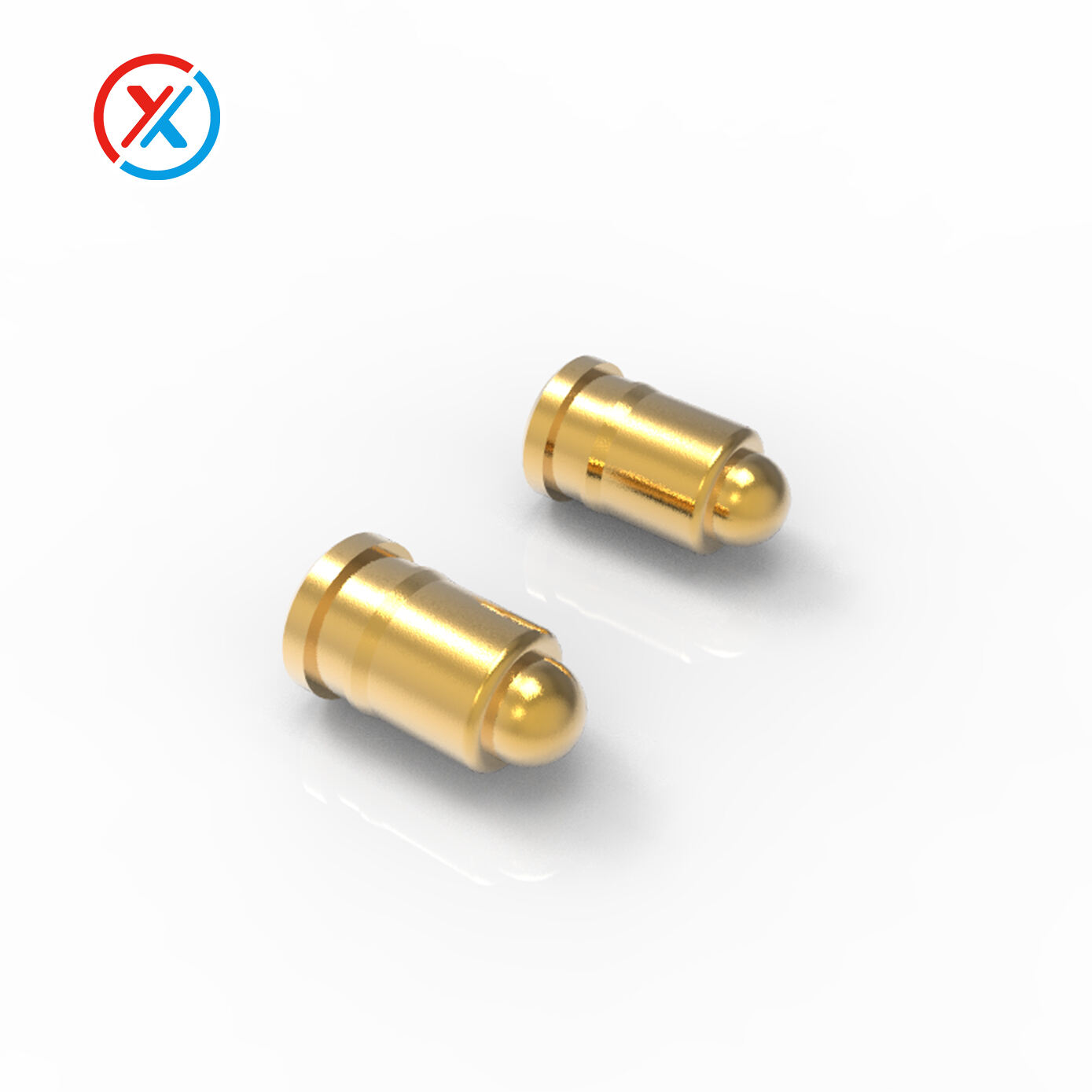

1A Pogo Pin SMD Height 3.3mm/Brass Gold Plated Life 100000
Product Name：1A 2A 3A pogo pin-RG 1002-12
Daily output: 500,000 pieces
Delivery time：5 to 15 days
E-mail: [email protected]
- Overview
- Inquiry
- Related Products
1.SMD 1A pogo pin
Under the working pressure of 0.5mm, the elasticity is 60g±20g, the maximum stroke is 0.6mm, the life test reaches 100,000 cycles, the rated voltage is DC12V, the rated current is 1A, and the single needle contact impedance is up to 50 milliohms
Size of pogo pin：Multiple specifications, support customization (gold plating thickness, material, size)
3、What are the advantages of choosing our pogo pins
100% environmentally friendly materials that meet RoHs and REACH requirements.
Automatic riveting press assembly, automatic inspection and shipment.
Tolerances can be controlled to ±0.01mm.
Contact impedance ≤ 15m Ω.
The life span can reach more than 1000000 times.
No mold opening, convenient customization, cost saving.
The elasticity can be adjusted according to the requirements.
7-day flexible customized production cycle, simultaneous provision of EMC protection optimization solutions and failure analysis services, to help you build a zero-defect supply chain system at a lower overall cost. ISO-certified factory production, complete material reports, environmental certification and 3D drawings are provided with the goods to help customers quickly pass product compliance reviews.
4、pogo pins parameters：
| ITEM | DATA #1 |
| Model | RG-1002 |
| Metallic materials | Brass C6801 |
| PIN electroplating | Customized to your needs |
| Rated current | 1A 2A 3A |
| Mechanical life | 100,000 cycle Min |
| Material and coating conform to ROHS and REACH standards | |
