6 Pin Magnetic Pogo DC 2A | 15mm Docking Connector
Product Model: SM800-6pin
Daily output: 50,000 sets
Certification:ROHS | REACH | ISO
E-mail: [email protected]
- Overview
- Inquiry
- Related Products

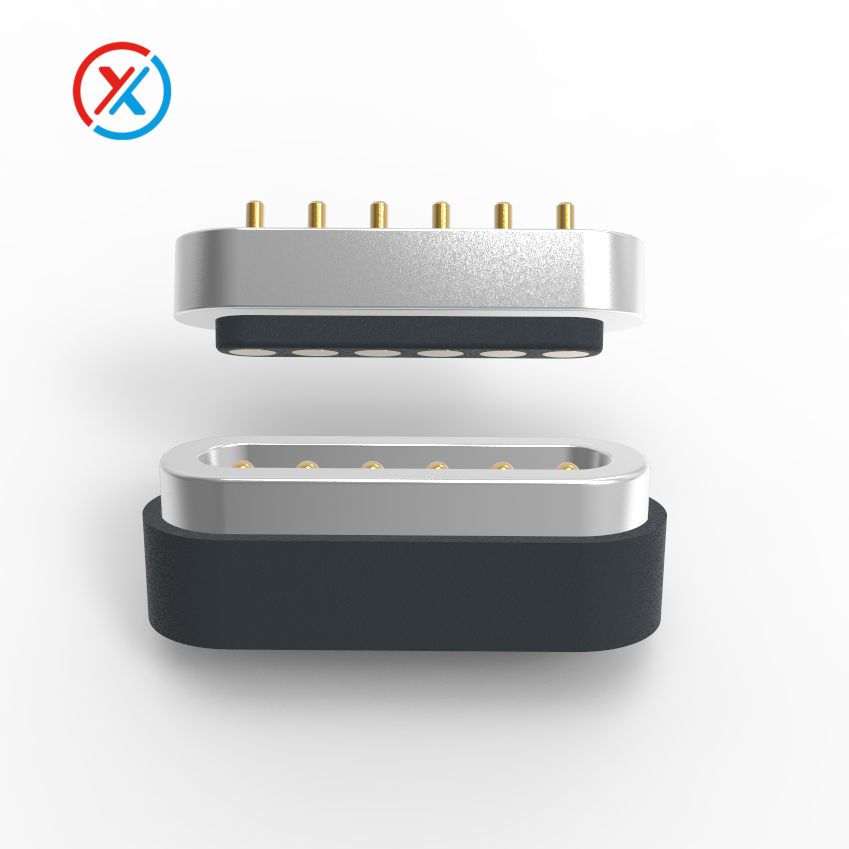

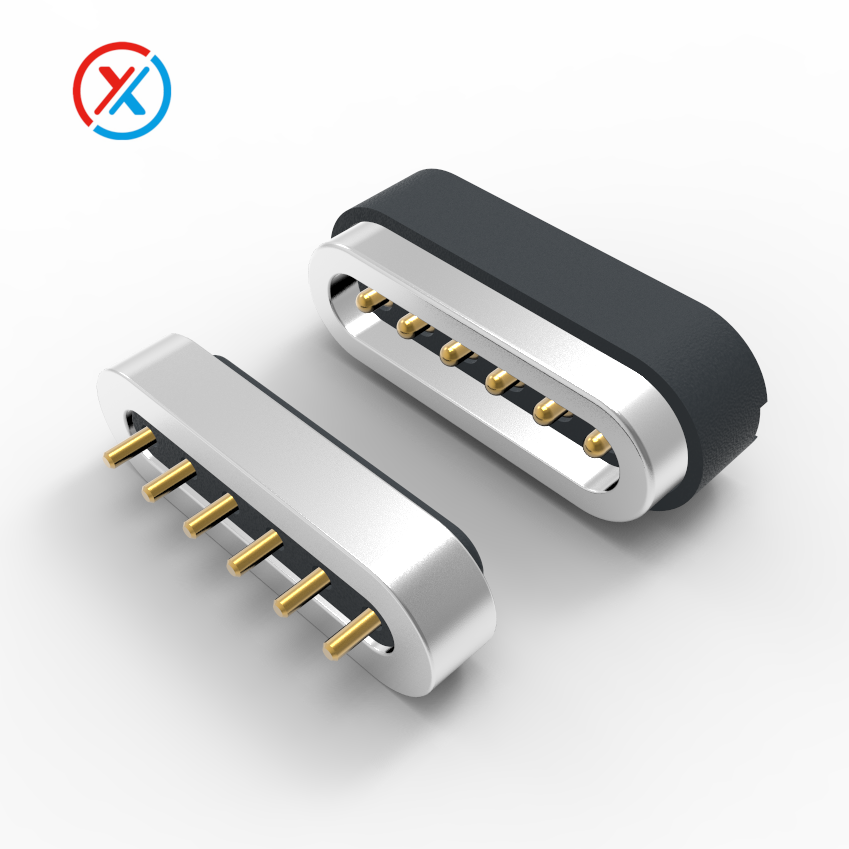

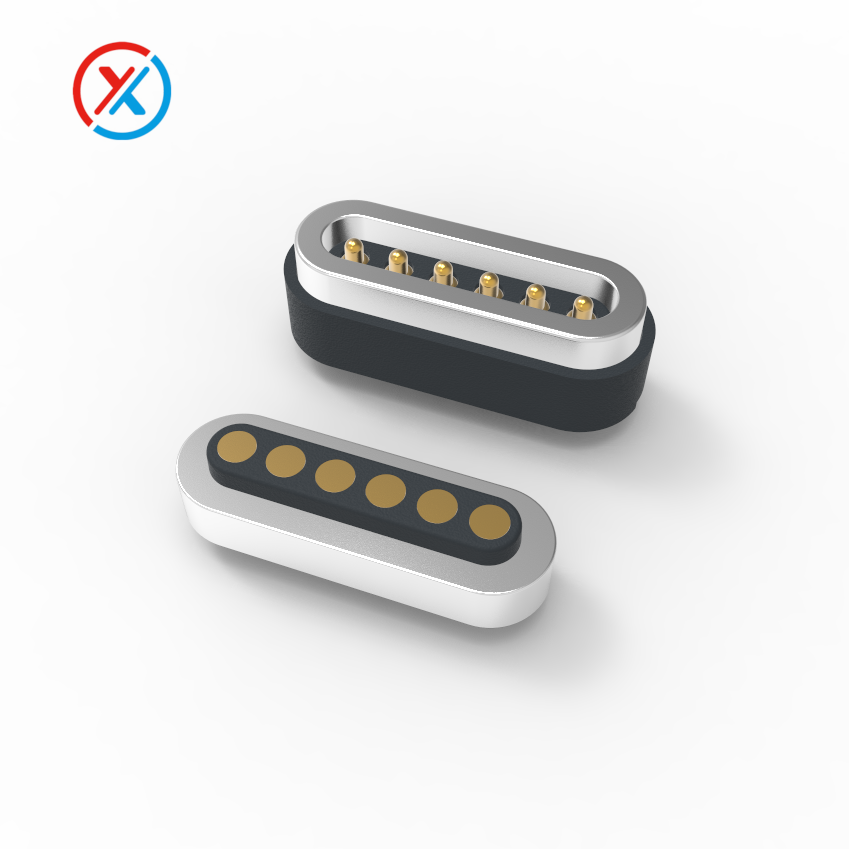

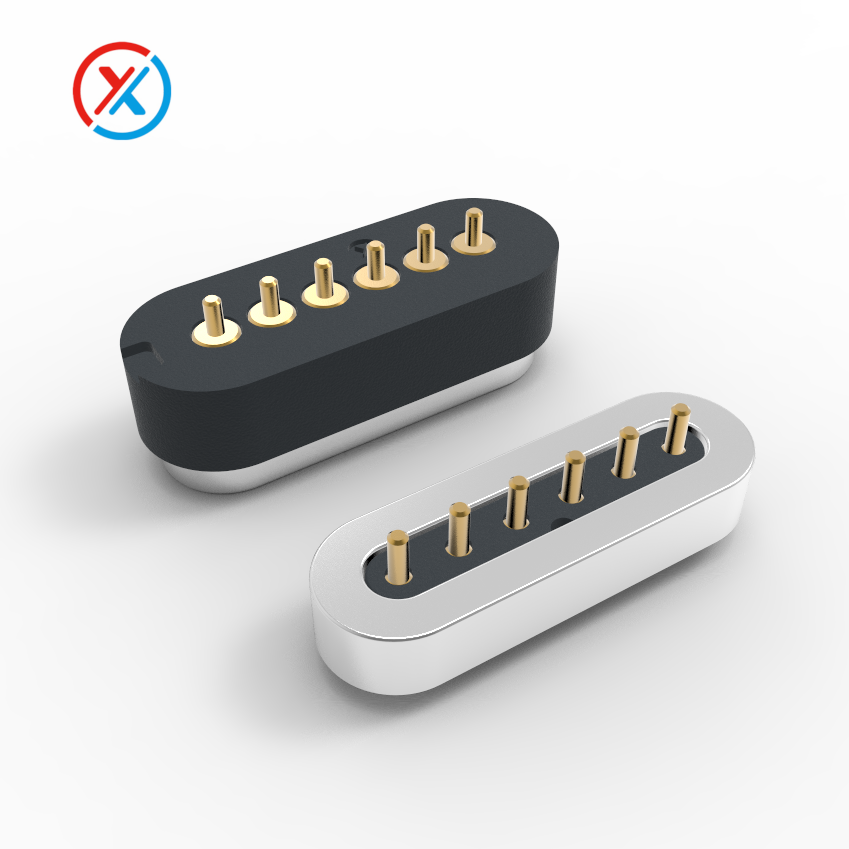

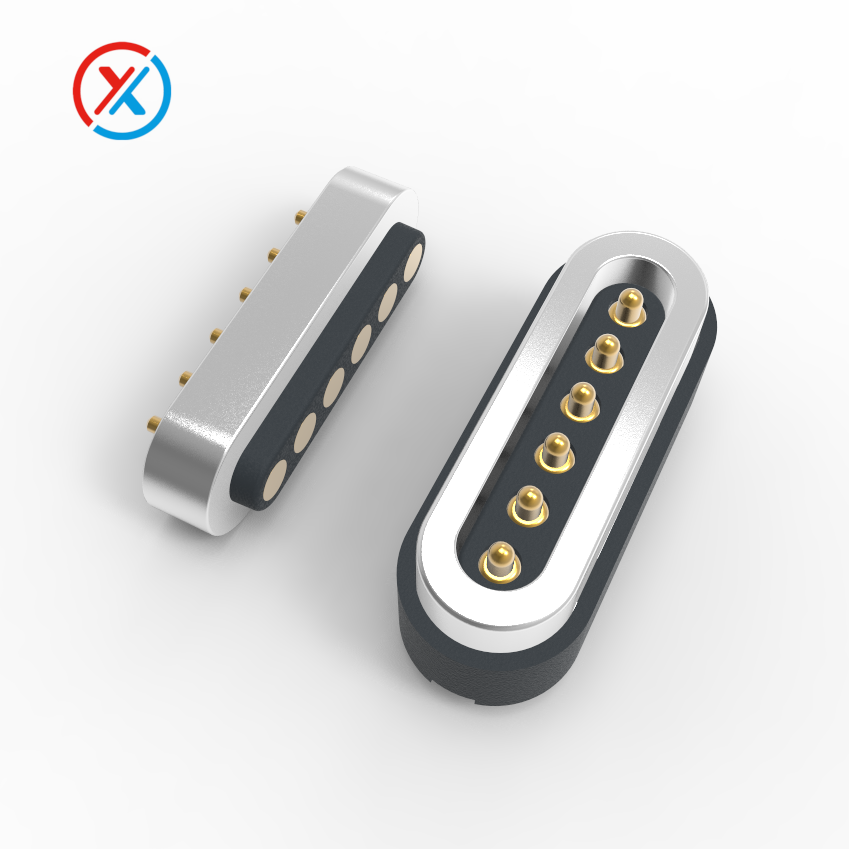

1、6 Pin magnetic pogo pin
Samples can be sent within 24 hours at the fastest. Please consult customer service or submit the form
Note:
- Material and coating conform to ROHS and REACH standards

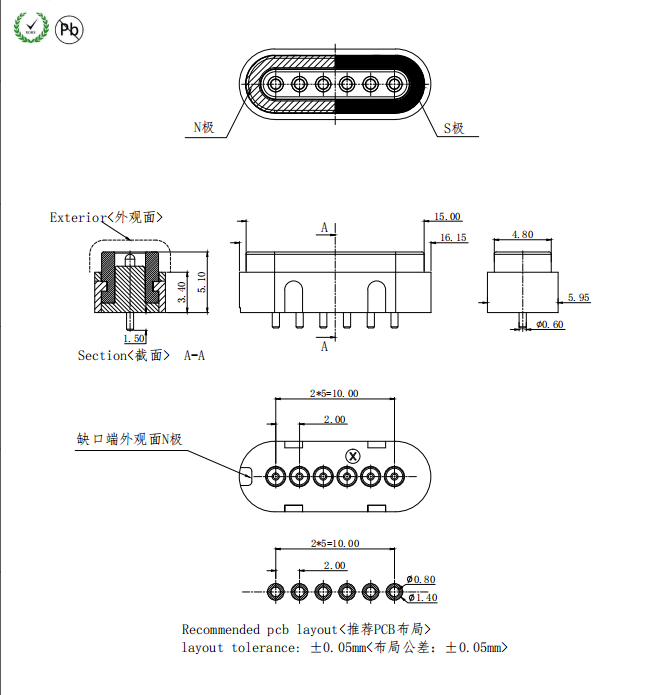

- @Key inspection dimension
| Mechanical | |
| Contact force | 40g士20g at 0.8mm working storke Full storke 1.0mm |
| Life test | 10,000 cycles |
| Electrical | |
| Rated voltage | DC 12V |
| Rated current | 2A Max |
| Contact resistance of spring pin | 50 milliohm Max |
| Environmental performance | |
| Operation Temperature | -25℃ to +80℃ |
| Salt Spray | 24H |
Advantage:
In terms of delivery time, our company produces 50,000 magnetic pogo pins per day. Samples can be sent as soon as 24 hours, and the fastest delivery time for large orders is 7 days.
In terms of environmental protection, all our product lines use halogen-free and lead-free materials and have passed ROHS and REACH certifications.
In terms of company strength, we have 15 years of experience in the research and development and production of pogopins. We have developed over 2,000 products so far. Our mature experience and equipment can ensure product quality
