Broche Pogo Pin Gold Plated Lead-Free /Fast Delivery And High Quality

Product Name：1A 2A 3A pogo pin-RG 1002
Daily output: 500,000 pieces

E-mail: [email protected]

(I'm online, contact me now!)

Inquiry

Overview
Inquiry
Related Products

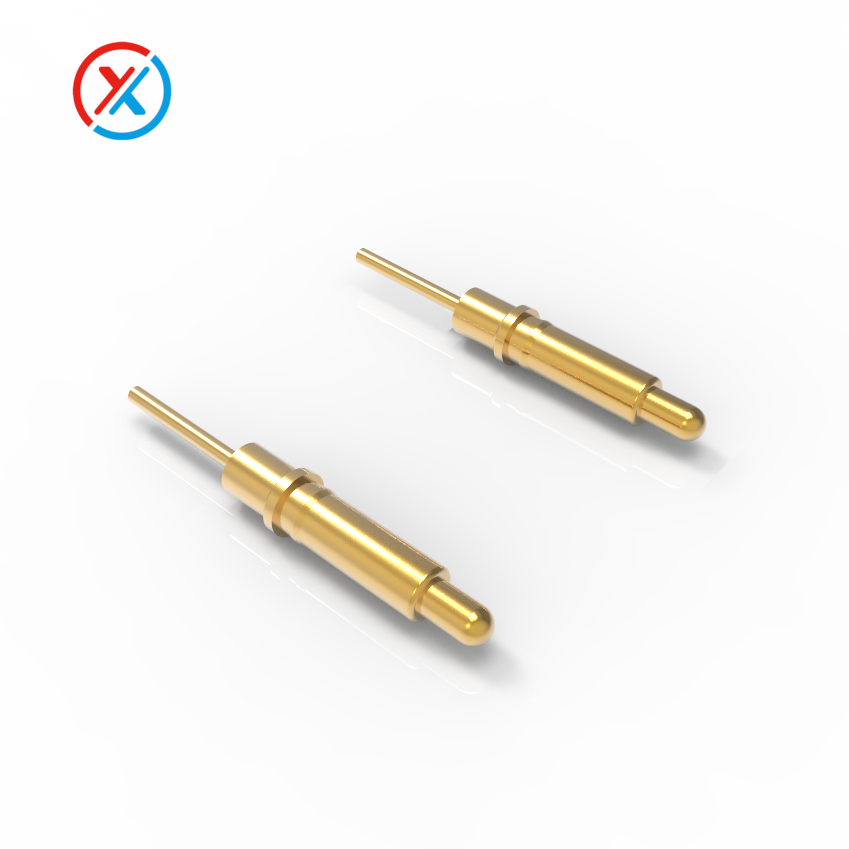

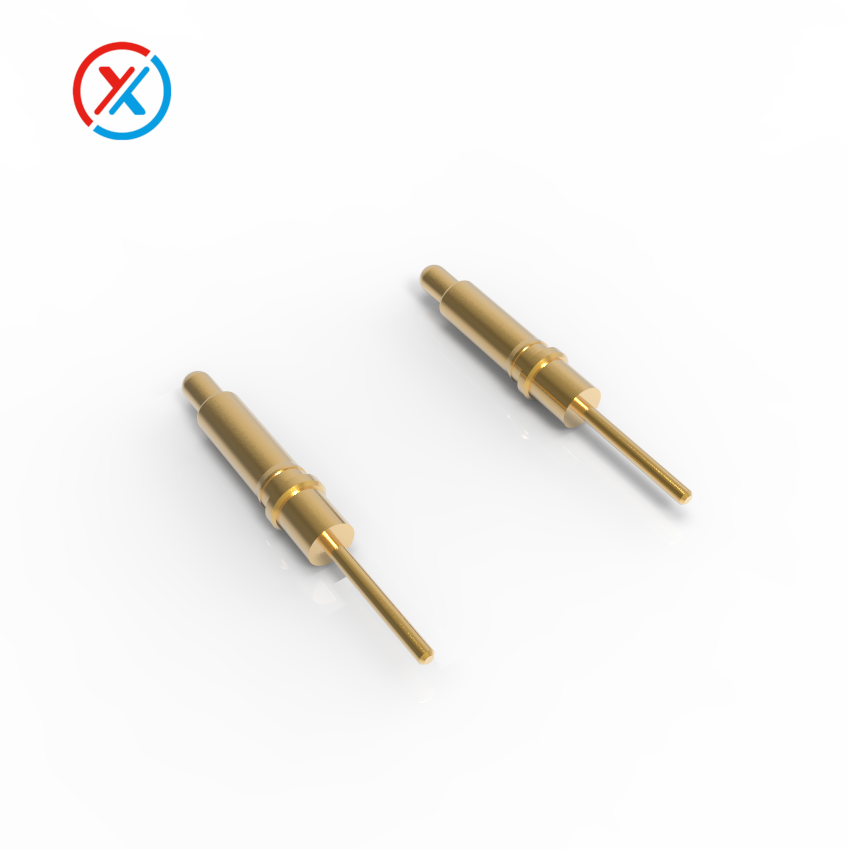

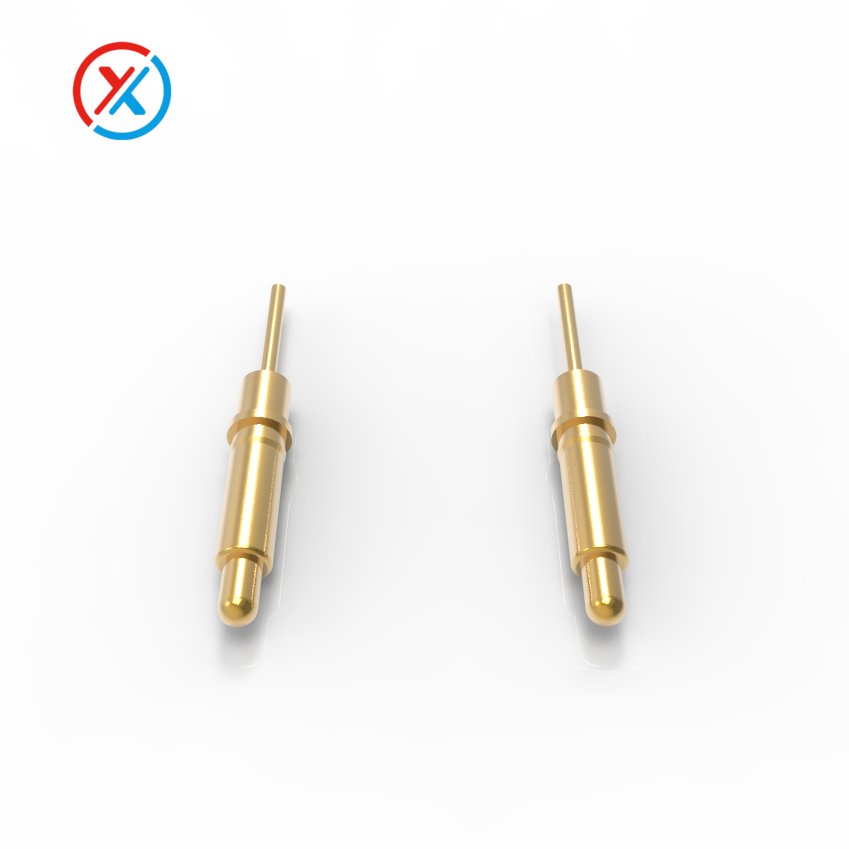

1.Gold plated lead-free pogo pin

This is a DIP type waterproof pogo pin, the current can reach a maximum of 3A, the voltage can be customized according to demand.,brass substrate with 0.8μm gold coating to achieve contact resistance ≤10mΩ, and plug life of 100,000 times

Size of pogo pin：Multiple specifications, support customization (gold plating thickness, material, size)

3、What are the advantages of choosing our pogo pins

100% environmentally friendly materials that meet RoHs and REACH requirements.

Automatic riveting press assembly, automatic inspection and shipment.

Tolerances can be controlled to ±0.01mm.

Contact impedance ≤ 15m Ω.

The life span can reach more than 1000000 times.

No mold opening, convenient customization, cost saving.

The elasticity can be adjusted according to the requirements.

7-day flexible customized production cycle, simultaneous provision of EMC protection optimization solutions and failure analysis services, to help you build a zero-defect supply chain system at a lower overall cost. ISO-certified factory production, complete material reports, environmental certification and 3D drawings are provided with the goods to help customers quickly pass product compliance reviews.

4、pogo pins parameters：

ITEM	DATA #1
Model	RG-1002
Metallic materials	Brass C6801
PIN electroplating	Customized to your needs
Rated current	1A 2A 3A
Mechanical life	100,000 cycle Min
Material and coating conform to ROHS and REACH standards
