dc Magnetic Pogo Pin Connector | 12 volts 3 amps
Product Name：Magnetic connector-SM 100 4-PIN
Delivery time: 48 hours to send samples
Daily output: 50,000 sets
Certification:ROHS\REACH\ISO
E-mail: [email protected]
- Overview
- Inquiry
- Related Products

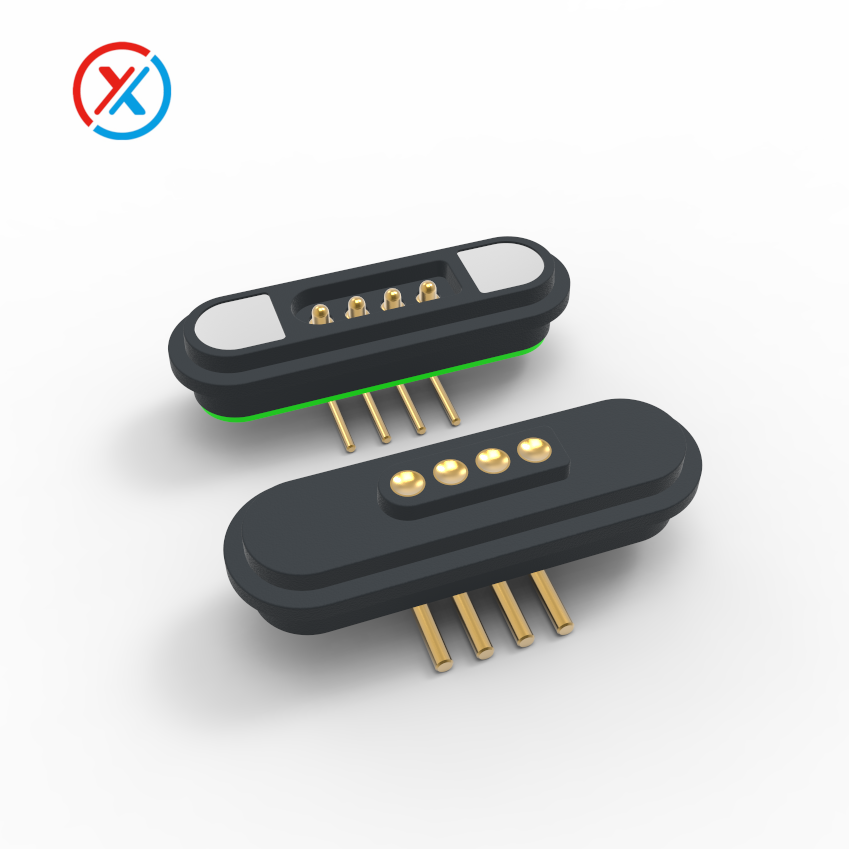

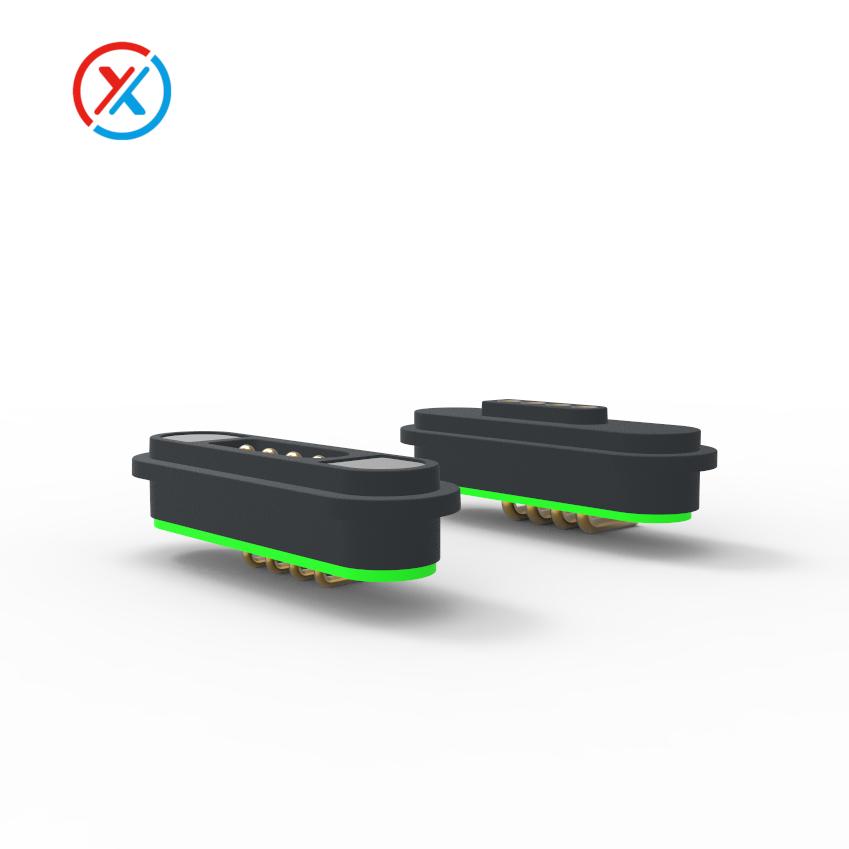

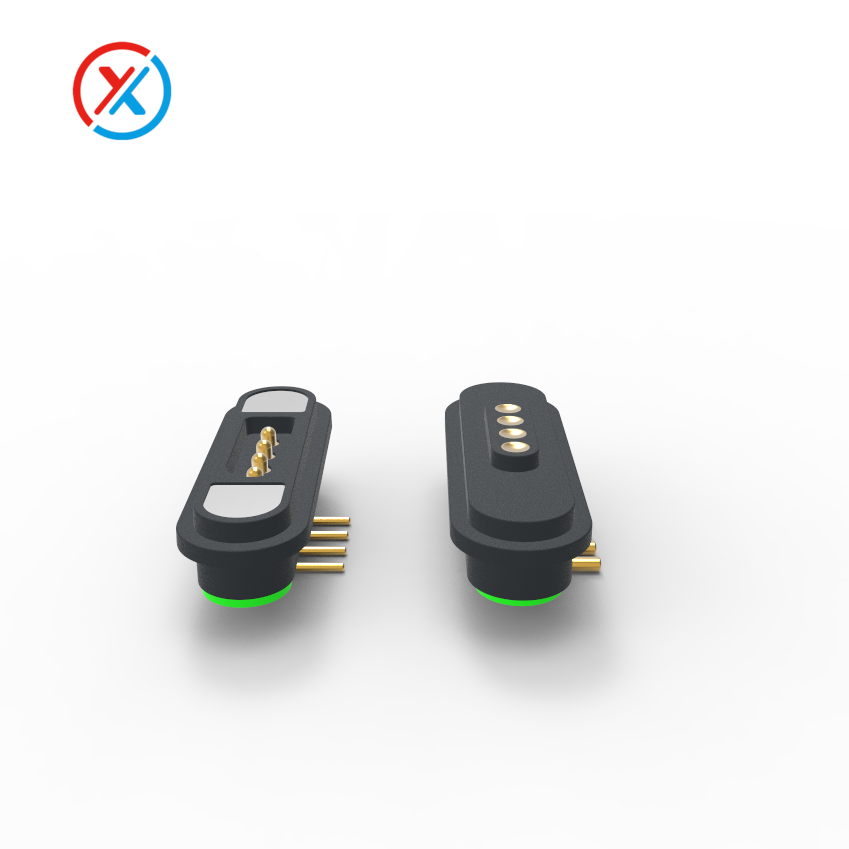

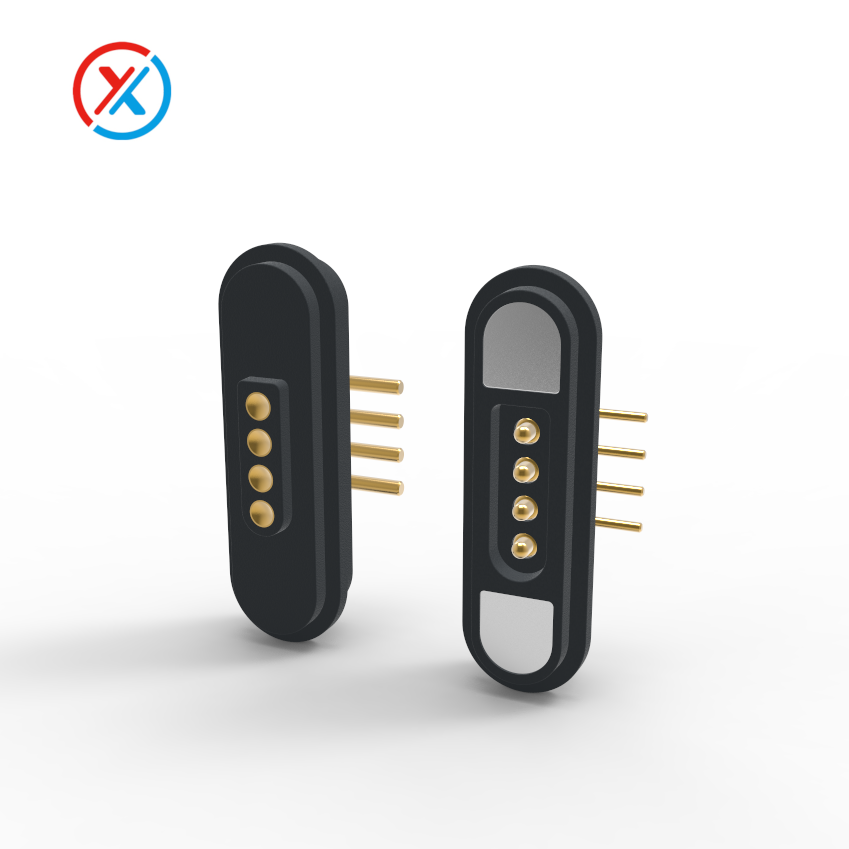

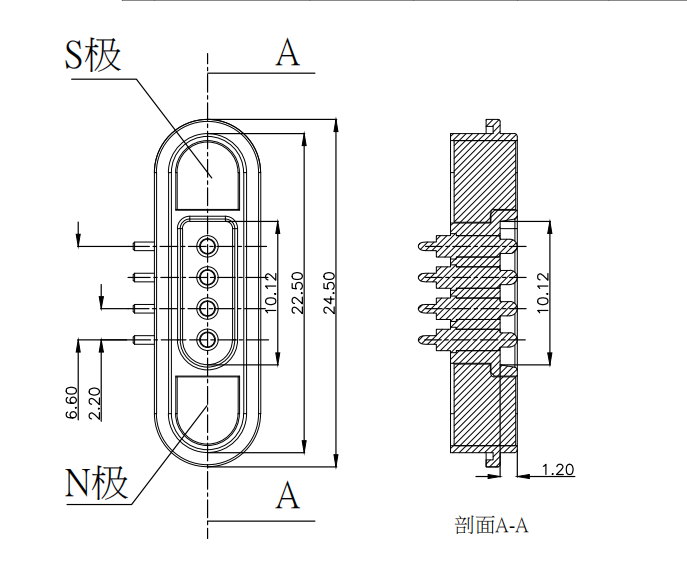

1、dc magnetic pogo pin connector
This is a 4-pin pogo pin interface. The female connector is waterproof and has an IP68 rating. The spacing between the pins is 2.2mm, which ensures stable current transmission.The entire series is made of halogen-free and lead-free materials and has passed the ROHS/REACH/IEC 62368-1 certification. It is compatible with the standards of EU EN 50581, US UL 2238 and Japanese JIS C 5402.
Choose our advantages:
✅ Nanoscale space efficiency: The 90° bending structure saves 45% of internal space and is suitable for small devices
✅ Extreme environment validation: Operating within a wide temperature range of -40 ° C to 125 ° C, IP68 water resistance (optional), no failure after 72 hours of salt spray test (ASTM B117)
✅ Smart magnetic attraction system: N52 neodymium iron boron magnetic ring array with ±2mm blind insertion tolerance, magnetic force adjustable from 500 to 5000 Gauss
| Applied in consumer electronics, medical equipment, automotive electronics, roboHigh quality and affordable | |
| ITEM | DATA #1 |
| Model | SM-100 4-Pin |
| Metallic materials | Brass C6801 |
| spacing | 2.2mm |
| Magnet | N52 |
| Rated current | 3A |
| Mechanical life | 10,000 cycle Min |
| Salt spray test | 48H |
| Suction force | 500±20% |
| Waterproof class | IPX4 |
| Material and coating conform to ROHS and REACH standards | |
3、Pogo pin magnetic connector scheme can be customized according to your requirements.
1. Shape and structure: round, square, long strip, runway, etc.
2. Wire materials: PVC, TPE, silica gel, etc.
3. Wire shape: round wire, braided wire, flat wire, etc.
4. Waterproof grade: up to IP68.
5. Suction: 150g-3000g.
6. Rated voltage / current: ≤ 120V, ≤ 40A.
7. Connection method: 90 °, 180 °or other angle.
8. Replacement ability: Ihammer O adapter, USB2.0/3.0, HDMI, RJ45, D-SUB, pin busbar, DC Jack, etc.
9. Mother end assembly style; DIP, 90 °bending, welding wire, glue wrap molding, etc.
10. Mother end positioning mode: concave and convex groove, sealing ring, clamping lock, positioning ear, positioning column, in-mold injection molding.
Let us be your most reliable supplier!
