Pogo Pin Electrical Contact / 2A DC Current Supplier
Product Name：2A pogo pin-RG 1019
Daily output: 500,000 pieces
Delivery time：5 to 15 days
E-mail: [email protected]
- Overview
- Inquiry
- Related Products

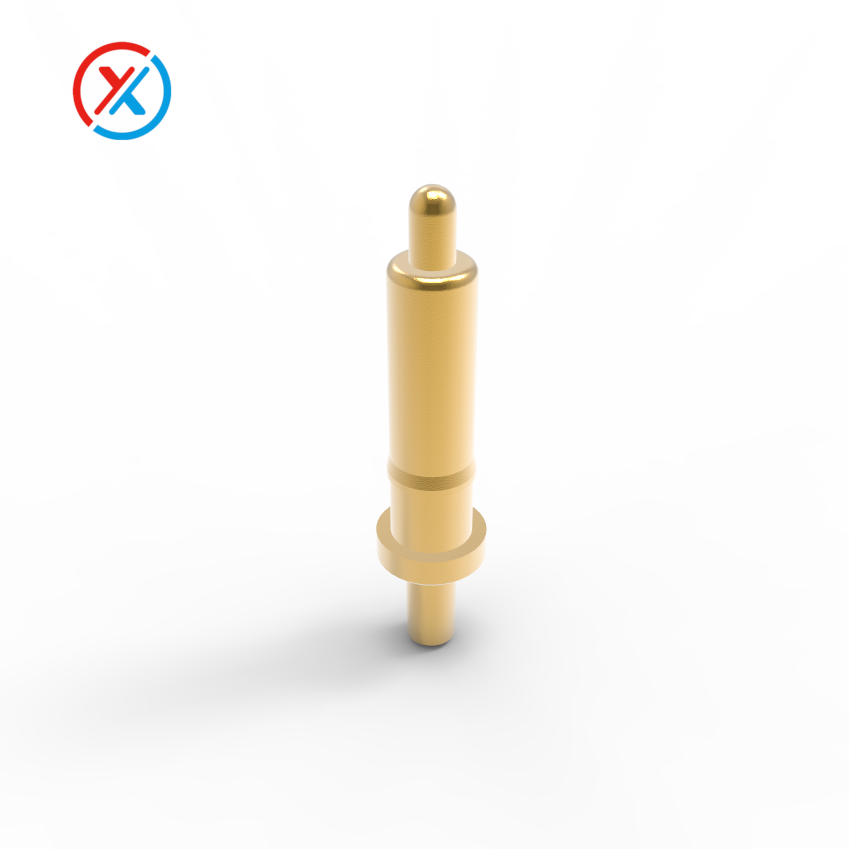

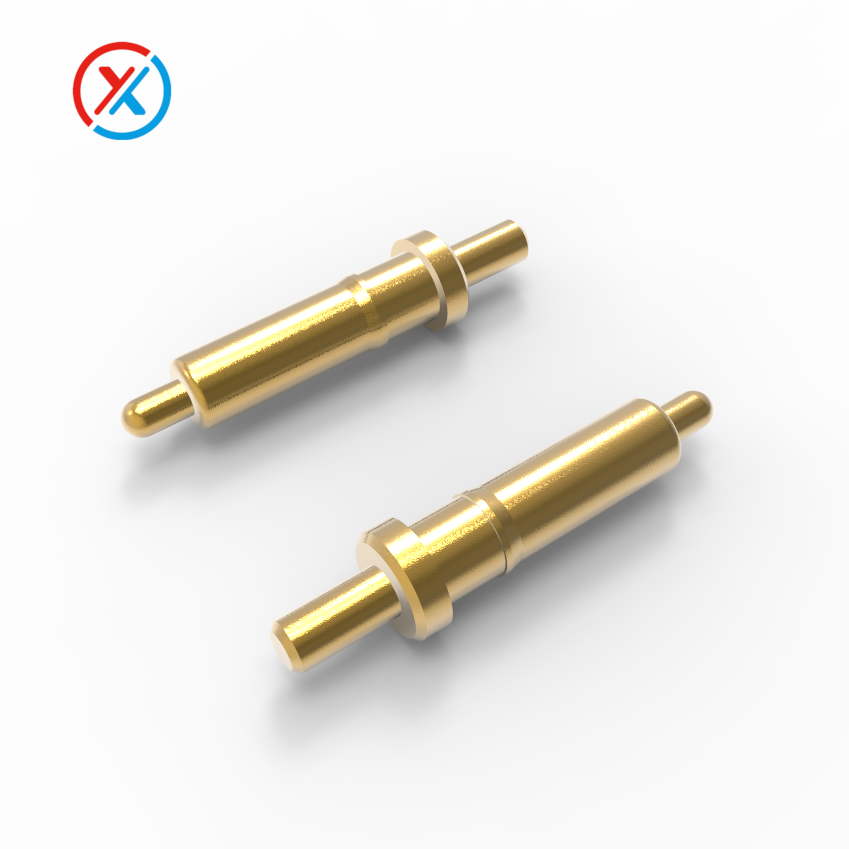

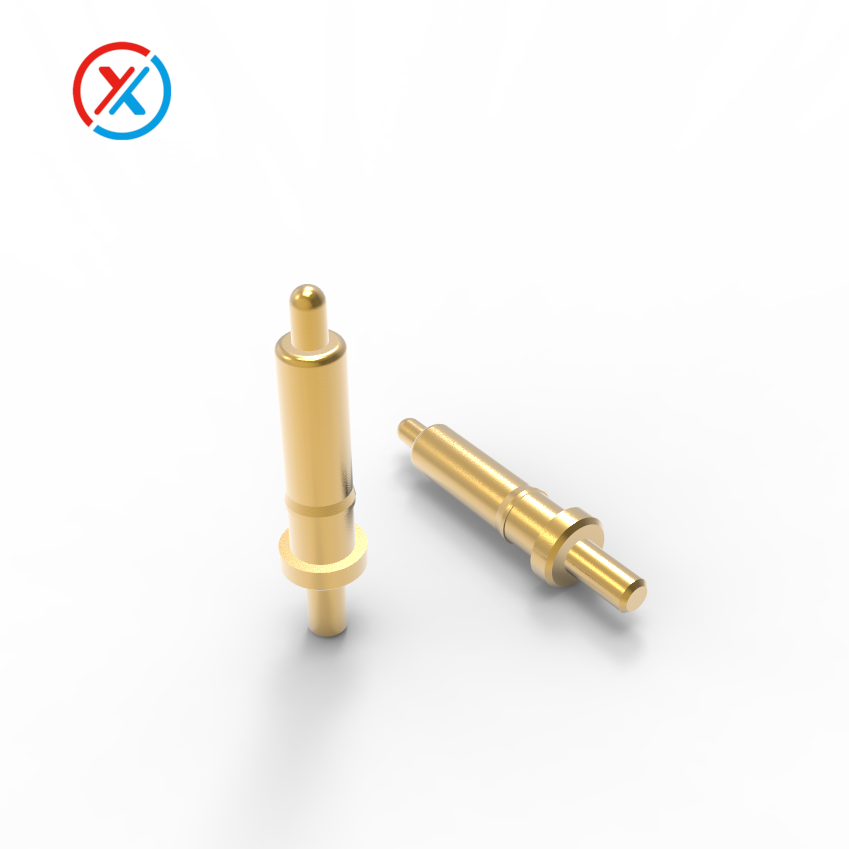

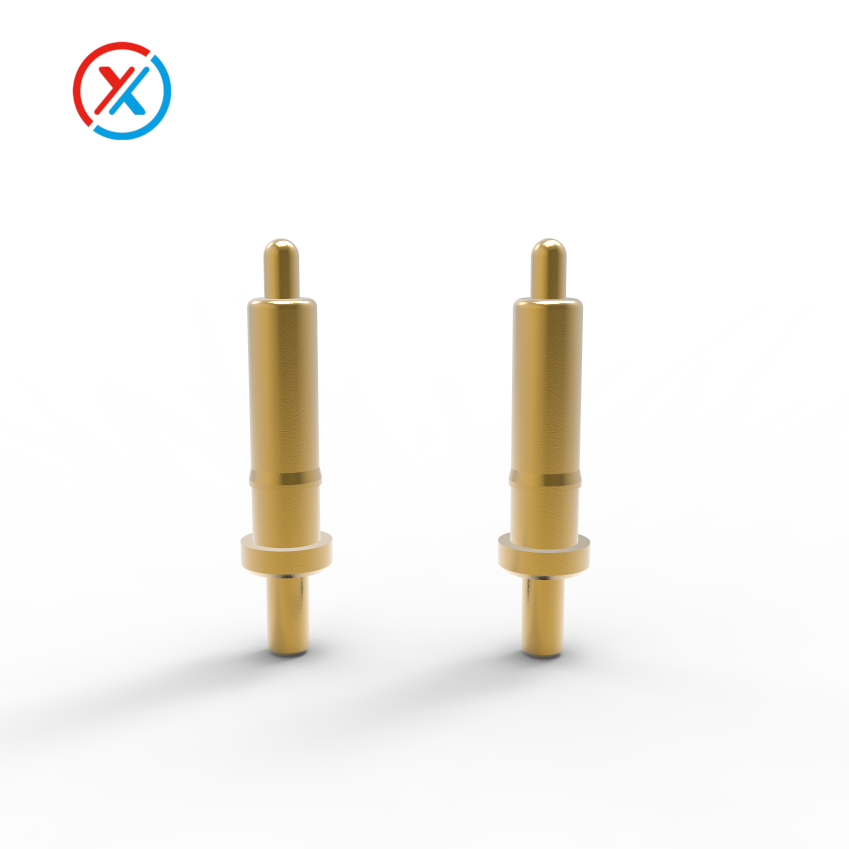

1.Pogo pin electrical contact 12V 2A
This is a brass gold-plated high-temperature resistant pogo pins made of lead-free copper. The material and coating comply with ROHS and REACH standards. The DIPpogo pin has a positioning pin at the end of the needle tube, which makes it convenient for the spring pin to be soldered to the PCB board without offset. It can also ensure the stability and accuracy of the current connection, and the high-precision pogo pin can work stably under various complex situations. This spring loaded connector pins can be widely used in various electronic devices, such as aerospace electronics, medical equipment electronics, automotive electronics, industrial electronics, 5G communication electronics, etc. Specific application areas also include drone equipment, big health products, Internet of Things equipment, smart data centers, portable devices, smart robots, etc.
Our company designs and develops 800+ types of pogo pin, and can also be customized according to your size specifications, and provide solutions, customization cycle 5-15 days, please contact us immediately
3、What are the advantages of choosing our pogo pins
100% environmentally friendly materials that meet RoHs and REACH requirements.
Automatic riveting press assembly, automatic inspection and shipment.
Tolerances can be controlled to ±0.01mm.
Contact impedance ≤ 15m Ω.
The life span can reach more than 1000000 times.
No mold opening, convenient customization, cost saving.
The elasticity can be adjusted according to the requirements.
7-day flexible customized production cycle, simultaneous provision of EMC protection optimization solutions and failure analysis services, to help you build a zero-defect supply chain system at a lower overall cost. ISO-certified factory production, complete material reports, environmental certification and 3D drawings are provided with the goods to help customers quickly pass product compliance reviews.

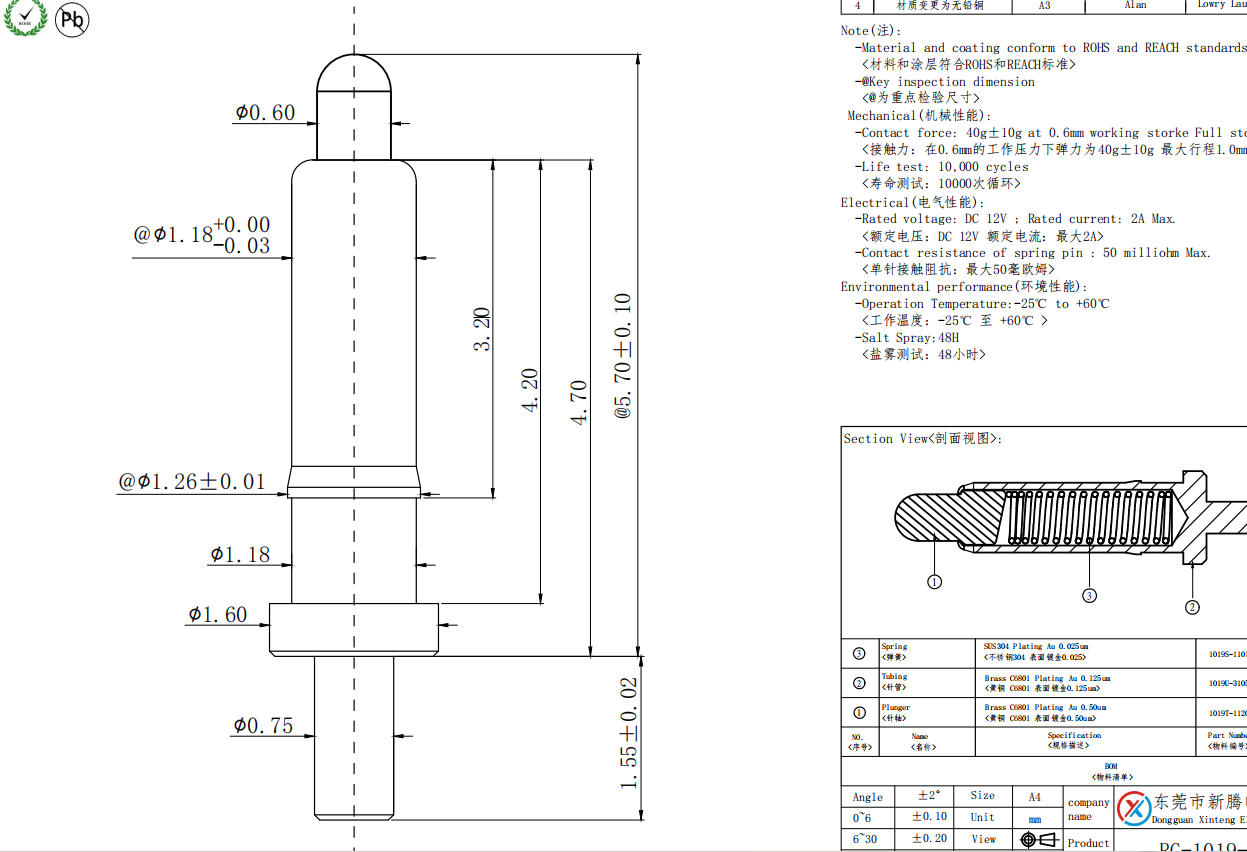

4、pogo pins parameters：
| ITEM | DATA #1 |
| Model | RG-1019-31P |
| Metallic materials | Brass C6801 |
| PIN electroplating | Customized to your needs |
| Rated current | 2A |
| Mechanical life | 10,000 cycle Min |
| Material and coating conform to ROHS and REACH standards | |
