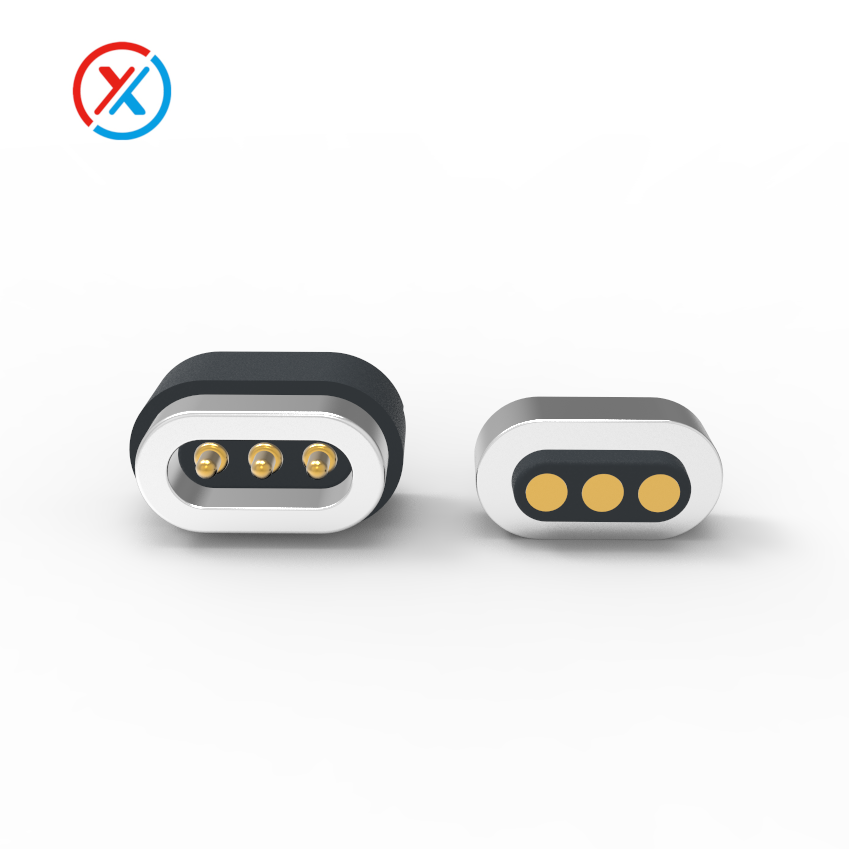

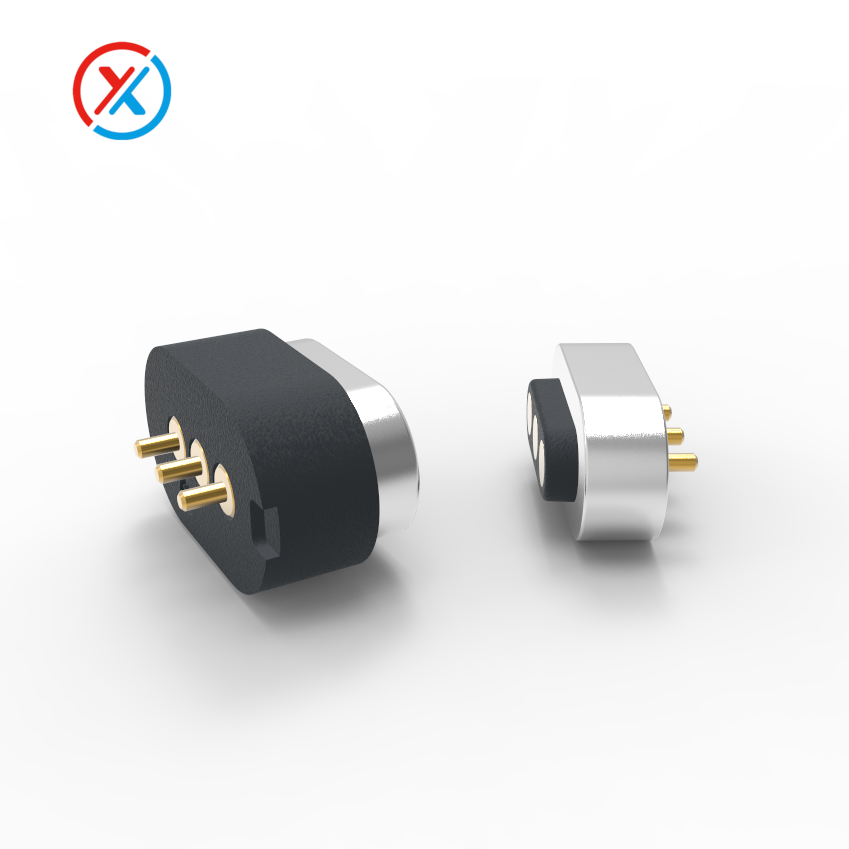

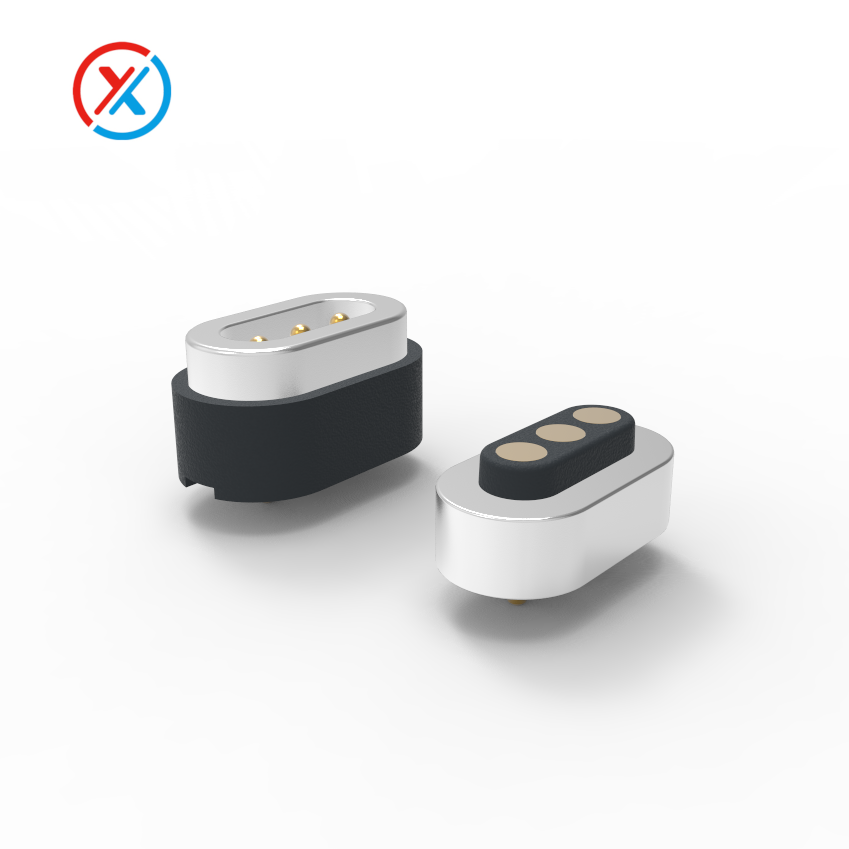

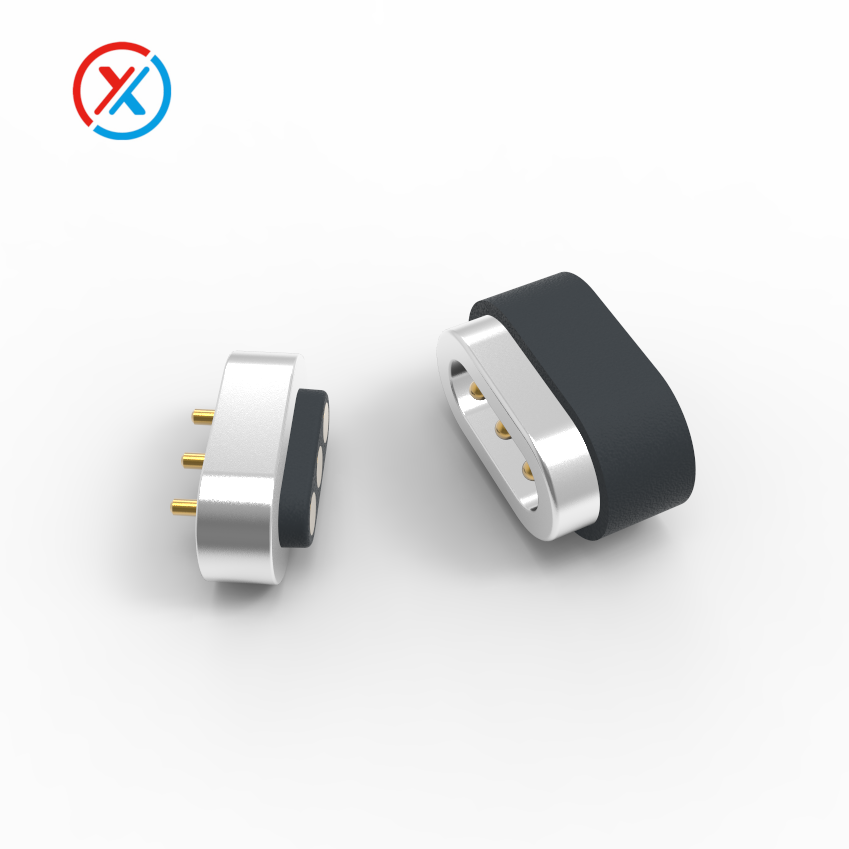

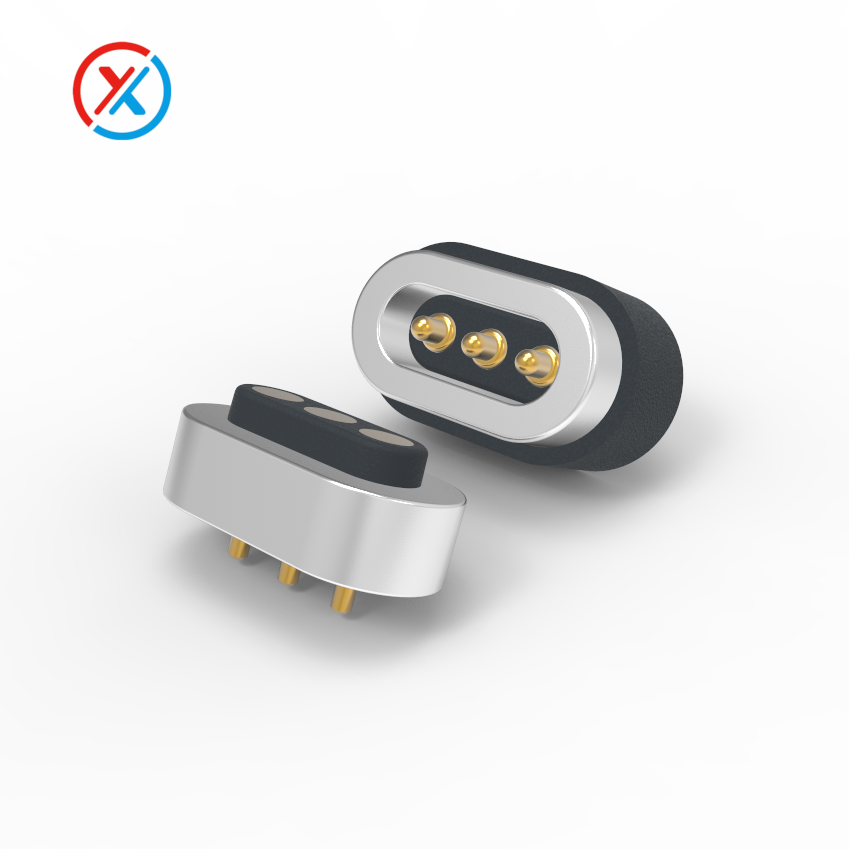

Pogo usb Height 6.6mm | 3 Wire Magnetic Connector

Product Model: SM800-3pin

Daily output: 50,000 sets

Certification:ROHS | REACH | ISO

E-mail: [email protected]

(I'm online, contact me now!)

Inquiry

Overview
Inquiry
Related Products

1、3 Wire magnetic connector

Magnetic quick connection simplifies the operation process. It can be connected with one hand and is suitable for high-frequency usage scenarios such as car charging and smart home. The ring-shaped magnetic attraction design matches the automatic positioning and adsorption characteristics, supporting multi-directional insertion such as direct insertion and side insertion. The repeated insertion and extraction life can reach more than 10,000 times.

Note:
- Material and coating conform to ROHS and REACH standards
- @Key inspection dimension

Mechanical
Contact force	40g士20g at 0.8mm working storke Full storke 1.0mm
Life test	10,000 cycles
Electrical
Rated voltage	DC 12V
Rated current	2A Max
Contact resistance of spring pin	50 milliohm Max
Environmental performance
Operation Temperature	-25℃ to +80℃
Salt Spray	24H

Advantage:

In terms of delivery time, our company produces 50,000 magnetic pogo pins per day. Samples can be sent as soon as 24 hours, and the fastest delivery time for large orders is 7 days.

In terms of environmental protection, all our product lines use halogen-free and lead-free materials and have passed ROHS and REACH certifications.

In terms of company strength, we have 15 years of experience in the research and development and production of pogopins. We have developed over 2,000 products so far. Our mature experience and equipment can ensure product quality
