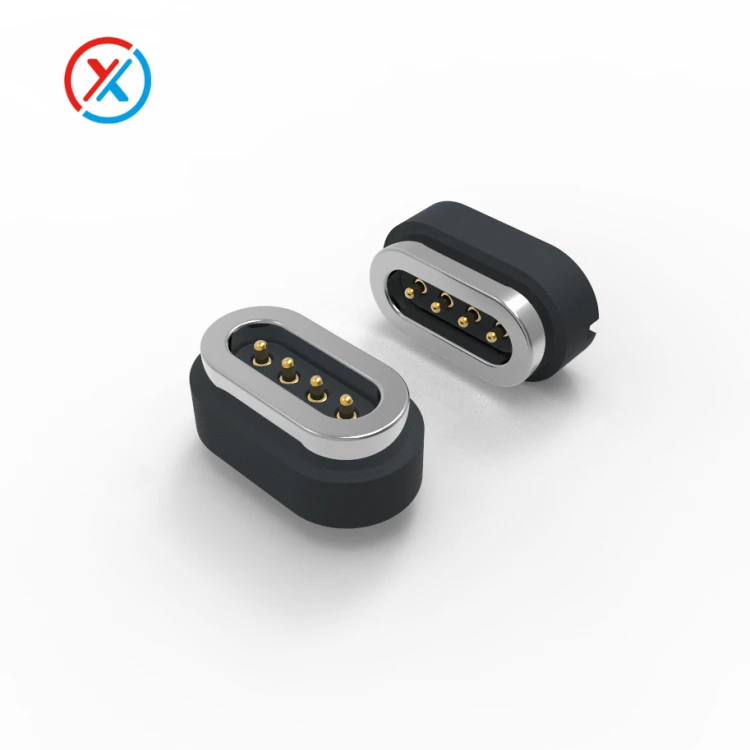

Designing a magnetic pin connector for outdoor equipment is not simply a matter of adding a waterproof seal to an indoor connector.
An outdoor interface may be exposed to rain, condensation, dust, mud, salt, ultraviolet radiation, temperature cycling and repeated mechanical movement. These conditions often act together. A connector that passes an immersion test in the laboratory can still develop corrosion, unstable contact resistance or magnet damage after months of actual outdoor use.
The design therefore needs to consider the entire interface, including the Pogo Pins, magnets, plastic housing, metal structure, seals, cable exit and the mounting components around the connector.
Do not use the IP rating as the complete outdoor specification
Ingress protection testing addresses defined conditions for solids and water. It does not cover every environmental mechanism that can damage an outdoor connector.
For example, a sealed connector may prevent rain from entering directly through its mating surface while still developing condensation inside the enclosure.
This can happen when equipment heats during operation and cools afterward. Air inside the enclosure expands and contracts. If moisture enters through another path, repeated temperature cycling can leave condensation around contacts, PCB terminals or cable connections.
The practical question is therefore not only:
Can water pass through the front of the connector?
It is also:
Can moisture accumulate anywhere behind it?
The connector, cable gland, enclosure joint and equipment housing should be treated as one environmental sealing system.
Condensation can be more difficult than direct rain
Rain is visible. Condensation often is not.
Moisture can form behind a connector even when the external surface looks dry. This is particularly relevant for equipment operating outdoors overnight or in areas with large day-to-night temperature changes.
A recessed connector mounted in a metal enclosure may cool quickly after operation. Moist air inside the housing can then condense on conductive surfaces.
If the connector carries low-voltage signals, even a small amount of contamination combined with moisture can affect insulation resistance or contact stability.
Drainage, ventilation strategy and enclosure sealing therefore need to be considered together.
Adding more sealant around the connector face does not automatically solve an internal condensation problem.
The Pogo Pin contact area should not become a water trap
Magnetic connectors often use exposed spring-loaded contacts because the interface needs to mate quickly.
This creates a design challenge outdoors.
If the contact surface contains deep recesses or pockets where water remains after rain, the connector may stay wet long after the surrounding enclosure has dried.
The geometry should encourage water to leave the contact area rather than collect around the Pogo Pins.
Depending on the installation direction, this can involve drainage paths, shallow recesses or a housing shape that prevents standing water.
The mounting orientation matters.
A connector that performs well when installed vertically can retain water when the same design is installed horizontally with its mating surface facing upward.
Outdoor testing should reproduce the real installation orientation.
Waterproofing the front face does not protect the rear termination
The rear side of the connector is often overlooked.
A waterproof mating face may still lead to field failures if moisture reaches the cable termination, solder joint or PCB from behind.
Common leakage paths include:
the cable-to-overmold interface
gaps between plastic and metal inserts
adhesive interfaces
housing seams
mounting holes
PCB openings
cable jacket damage
The cable entry deserves particular attention because it is both a sealing point and a mechanically stressed area.
Repeated bending can gradually separate the cable jacket from an overmold or sealing compound.
A static waterproof test performed on a new cable may not reveal this problem.
Where the cable moves in service, environmental testing should be combined with representative flexing or strain.
Magnet corrosion needs to be controlled from the beginning
High-strength magnetic connectors often use neodymium-based permanent magnets because they provide substantial magnetic force from a compact volume.
The magnet itself may require protection against corrosion.
If its protective coating is scratched, chipped or damaged during assembly, moisture can reach the underlying material.
Corrosion may then develop beneath the coating rather than remaining visible only on the surface.
Edges are especially vulnerable because they can be damaged when magnets are pressed into a pocket or handled with metal tools.
The housing should therefore protect the magnet mechanically.
The assembly method should also avoid forcing the magnet against sharp plastic or metal features.
This becomes more important in outdoor equipment where water, salts or cleaning chemicals may remain near the connector for long periods.
Sealing the magnet can change the magnetic force
Protecting the magnet introduces another design trade-off.
Every additional layer between the magnetic surfaces increases the effective magnetic gap.
Plastic walls, adhesive, protective coatings and sealing membranes may all contribute.
If the magnet is buried too deeply in the housing to protect it from water, the connector may lose more holding force than expected.
This is why the magnetic system and environmental sealing should be developed together.
A stronger magnet should not be used automatically to compensate for an inefficient mechanical layout.
It is usually better to control the distance between the magnets carefully while providing enough material and sealing structure to protect them.
Salt exposure is much more aggressive than ordinary rain
A connector used outdoors near the coast has a different environmental requirement from one installed in a dry inland location.
Salt deposits can remain on surfaces after water evaporates.
When humidity rises again, those deposits can attract moisture and create an electrically conductive environment.
Roadside equipment can face similar conditions in regions where de-icing salts are used.
Industrial sites may introduce other corrosive contaminants.
These environments deserve separate evaluation rather than being treated as generic outdoor exposure.
Contact plating, magnet protection, housing metals and fasteners should all be reviewed for corrosion resistance under the expected conditions.
An indoor magnetic connector with a rubber gasket added later should not automatically be considered suitable for coastal use.
Dissimilar metals can create galvanic corrosion
A magnetic connector assembly may contain several metals at once.
Examples include copper-alloy Pogo Pins, nickel or gold plating, stainless-steel components, aluminum enclosures and carbon-steel magnetic return pieces.
When dissimilar conductive metals are electrically connected in the presence of moisture or salt solution, galvanic corrosion can become possible.
The severity depends on the materials, exposed surface areas, electrolyte and electrical relationship between the components.
This issue is easy to miss when every individual component has acceptable corrosion resistance on its own.
The assembled metal combination is what matters.
Where necessary, suitable plating, insulating barriers or material changes can reduce the problem.
Decorative metal finishes should not be mistaken for corrosion isolation
A plated exterior may look well protected, but plating systems vary considerably.
A finish selected mainly for appearance may not provide enough durability for an exposed industrial environment.
Scratches, thin areas and sharp edges can become local corrosion sites.
Fastener holes and machined edges also deserve attention because they may expose the substrate after finishing.
For custom equipment interfaces, the surface treatment should be selected according to the actual exposure of each component rather than applying one finish to every part for visual consistency.
We manufacture connector mounting plates, protective sleeves, locating seats and other dedicated packaging-machinery components from customer drawings. Material and surface treatment can be specified according to where each part sits in the machine, including stainless steel, aluminum or other suitable materials where the design requires them.
This allows the connector interface to be developed around the environmental condition of the complete assembly rather than around a standard mounting bracket.
Ferromagnetic debris can be attracted directly to the connector
Magnets create a problem that ordinary non-magnetic connectors do not have.
Steel dust, machining particles and other ferromagnetic debris can be attracted toward the mating interface.
Once particles collect around the magnets or Pogo Pins, several problems can follow.
They can prevent full mating.
They can create scratches on the contact surface.
A sufficiently conductive particle may also bridge exposed electrical contacts.
This is particularly relevant around machinery where metal wear debris, cutting particles or maintenance dust may be present.
The connector face should therefore be easy to inspect and clean.
Deep narrow pockets that trap metal fragments should be avoided where possible.
A removable protective cap may also be useful when the connector remains disconnected for long periods.
Mud creates a different problem from fine dust
Mud can fill recesses and dry into a mechanically hard deposit.
If the connector is then mated without cleaning, dried material can prevent full seating.
The magnets may still pull the two halves together strongly enough to give the impression that they are connected properly, while the Pogo Pins receive insufficient compression.
This can cause unstable contact resistance or local heating during charging.
Housing geometry should therefore avoid creating deep areas that are difficult to clean.
For field equipment, connector maintenance should also be realistic. A design that requires a fine tool to clean every contact recess may be unsuitable even if it performs well under laboratory conditions.
Water combined with conductive debris increases electrical risk
Water alone and metal contamination alone can each create problems.
Together, they can be more serious.
Moist metallic contamination around exposed contacts can create leakage paths between circuits.
This deserves additional attention where positive and negative power contacts sit close together.
Mechanical polarization and recessed contacts can reduce accidental bridging, but the layout should also provide reasonable spacing between electrical potentials.
For higher-voltage designs, clearance and creepage requirements need to be considered separately from the magnetic function.
UV exposure affects exposed plastics and cable jackets
Outdoor sunlight can degrade polymers that were originally developed for indoor use.
Depending on the material, prolonged ultraviolet exposure can cause color change, embrittlement, loss of surface strength or cracking.
The connector housing may remain functional initially and then become brittle after extended service.
Cable jackets and overmold materials face the same issue.
A UV-stable material or suitable protective formulation should be chosen where the connector remains exposed to sunlight.
The term "engineering plastic" by itself does not establish outdoor suitability.
The specific grade and environmental rating matter.
Plastic material must also handle temperature cycling
An outdoor connector can experience both low winter temperatures and elevated surface temperatures under direct sunlight.
Plastic housings change dimensions with temperature.
So do metal inserts, magnets, adhesives and sealing materials, but not at the same rate.
The resulting differential expansion can change:
magnet position
Pogo Pin working height
gasket compression
cable-seal pressure
insert retention
A connector that seals correctly at room temperature may behave differently at the temperature limits of the application.
Temperature cycling is therefore important for both sealing and electrical contact stability.
Adhesives need environmental compatibility
Adhesive is often used to retain magnets, seal components or secure cable structures.
Outdoor service adds several requirements.
The adhesive must tolerate the temperature range and expected moisture exposure. It should also remain compatible with the plastic housing and any metal coatings.
If the adhesive softens, cracks or loses adhesion, the magnet can shift.
A small magnet-position change can alter the magnetic air gap and holding force.
For waterproofing, loss of adhesion may create a direct leakage path.
Where possible, the mechanical structure should define the component position while adhesive provides retention or sealing.
Using adhesive as both a positional spacer and structural locator makes production variation harder to control.
Seal compression needs to remain controlled
O-rings and molded gaskets work within a suitable compression range.
Too little compression may leave a leakage path.
Excessive compression can permanently deform the sealing material or increase assembly stress.
Connector dimensions should therefore control the seal position accurately.
Molding tolerance, machined groove depth and housing flatness all affect the final compression.
This is another reason custom mechanical parts around the connector should use clear dimensional datums.
When an outdoor magnetic connector is installed into a non-standard packaging or processing machine, we can manufacture the corresponding adapter plate, sealing seat or protective housing directly from the approved customer drawing. Controlling these interface dimensions helps maintain the intended gasket compression while also keeping the Pogo Pins at their specified working height.
Do not let the seal become the mating stop unless it was designed for that purpose
In some designs, the two connector halves close until the gasket is compressed.
If the seal is allowed to determine the final mating position without adequate dimensional control, changes in rubber hardness or compression set can also change Pogo Pin stroke.
It is often better to use defined mechanical stop surfaces while allowing the seal to compress within its designed range.
The connector then has separate control of:
mating height and environmental sealing.
That separation makes both functions easier to validate.
Freeze and thaw can damage trapped water
Outdoor equipment used in cold climates has another issue.
Water that remains inside a recess can freeze.
Ice occupies more volume than liquid water, so repeated freeze-thaw cycling can place mechanical stress on cavities, seals or covers.
A connector that remains waterproof during liquid immersion may therefore need additional evaluation if water can be trapped before freezing.
Drainage geometry again becomes important.
Preventing standing water is often more effective than trying to make every small cavity strong enough to withstand repeated freezing.
Pogo Pin materials and plating should match the outdoor environment
The spring-loaded contacts are exposed mechanical components.
Their plating system should provide suitable corrosion resistance while also surviving repeated mating.
Gold-plated contact surfaces are often used because gold does not readily form insulating oxides, but the complete finish still needs to be considered.
Porosity, wear, nickel underlayers and base material exposure all affect long-term behavior.
A thin coating may perform well in a clean indoor charging dock while providing much less margin when exposed to moisture and contamination outdoors.
The correct plating specification should reflect both environmental severity and mechanical cycle requirements.
Contact wear can accelerate after contamination enters the interface
Dust and grit act as abrasives.
If these particles remain between a Pogo Pin and its mating pad, each connection cycle can scratch the plated surfaces.
This produces a failure sequence that may initially look unrelated to the environment.
First, contamination enters.
Then mating creates abrasive wear.
The plating becomes damaged.
Finally, corrosion or unstable contact resistance appears after the underlying layer is exposed.
A connector may therefore fail months after the original contamination event.
Environmental protection and contact wear should not be evaluated as completely separate topics.
Low temperatures can change cable flexibility
Cable performance matters as much as connector sealing.
Some jacket materials become much stiffer at low temperature.
A cable that bends easily at room temperature may apply considerably more force to the connector in cold conditions.
This can pull the magnetic interface sideways or increase stress at the cable exit.
The magnetic holding force and strain relief should therefore be evaluated with the intended cable at the minimum operating temperature where necessary.
A strong connector paired with an unsuitable cable can still produce unreliable outdoor performance.
Strain relief should keep cable loads away from the seal
The cable exit often performs several functions at once.
It carries the conductors, seals against moisture and absorbs mechanical movement.
If bending occurs directly at the sealing boundary, repeated movement can gradually damage the interface.
A good strain-relief design moves the bending point away from the critical seal and spreads the load over a longer section of cable.
For moving equipment, the expected bend direction and cycle count should be considered during design.
A static pull test alone may not represent real service.
Magnetic force should be tested at environmental extremes
Magnet performance varies with temperature.
The amount of change depends on the magnet material and grade.
A connector developed entirely at room temperature may therefore have different holding behavior in hot or cold outdoor conditions.
The test should use the complete assembly because temperature can also change Pogo Pin spring force, plastic dimensions and cable stiffness.
The important value is the usable holding margin after all of these factors interact.
Raw pull force measured from loose magnets is not enough.
Stronger magnets do not solve poor outdoor mechanics
It can be tempting to increase magnet strength whenever outdoor vibration causes occasional separation.
That may solve the visible symptom while leaving another problem in place.
The connector may be sliding laterally because the housing lacks guidance.
The cable may be pulling one edge upward.
A mounting panel may be flexing.
In those cases, stronger attraction increases mating impact and release force without correcting the mechanical instability.
Locating shoulders, recesses or guide features should control position. The magnet should provide the required retention.
Vibration can pump moisture through a marginal seal
A seal that performs correctly in a static test may behave differently when the connector vibrates continuously.
Small movements at the mating interface can repeatedly unload and reload part of the gasket.
Over time, this can encourage moisture migration through a marginal sealing path.
Industrial outdoor equipment should therefore be evaluated under combined conditions where appropriate.
Environmental reliability does not always come from testing water, vibration and temperature completely independently.
Their interaction can reveal problems that individual tests miss.
Corrosion can raise resistance before the connector stops working
Outdoor connector failures are not always sudden.
Contact resistance may increase slowly as surfaces degrade.
The device continues to operate, but charging efficiency falls or local temperature rises.
For power connectors, this progression deserves attention because resistive heating follows the I²R relationship.
A small increase in resistance becomes more important as charging current increases.
Environmental testing should therefore include contact-resistance measurements before and after exposure rather than checking only whether electrical continuity remains.
Waterproof tests should be followed by electrical tests
Passing a water test does not automatically mean the connector is electrically unchanged.
After environmental exposure, inspect:
contact resistance, insulation resistance where relevant, Pogo Pin movement, magnet condition, sealing surfaces and visible corrosion.
If the connector is intended for repeated outdoor mating, it may also need additional mechanical cycling after environmental exposure.
This helps determine whether moisture or corrosion has reduced the useful mechanical life.
Test the connector in its actual mounting orientation
A loose connector tested in a laboratory fixture may drain water differently from the production installation.
Mounting angle affects:
water retention, cable loading, dirt accumulation and drainage.
Surrounding machine panels can also shield one side while creating a water path on another.
Where practical, environmental validation should use a representative mounting arrangement rather than a connector suspended in an arbitrary test orientation.
Outdoor design should begin with the service environment
There is no single outdoor magnetic connector specification that fits every product.
A sheltered agricultural sensor and an exposed coastal charging interface both operate outdoors, but their environmental demands are very different.
Before finalizing materials and seals, define:
expected water exposure
dust and mud conditions
salt or chemical contamination
operating temperature range
UV exposure
cable movement
vibration
mechanical cycle life
cleaning methods
required electrical current and voltage
The connector can then be designed around the actual risks rather than around the word "outdoor."
FAQ
Is an IP-rated magnetic connector automatically suitable for long-term outdoor use?
No. An IP rating covers specified ingress tests, but long-term outdoor reliability may also depend on condensation, corrosion, UV exposure, temperature cycling, contamination, cable movement and material compatibility.
Why do magnetic connectors require extra attention in dusty industrial environments?
The magnets can attract ferromagnetic particles directly toward the mating surface. These particles may prevent full engagement, scratch the contact plating or, in some conditions, create unwanted conductive paths between exposed contacts.
What should be changed when a magnetic connector is used near the coast?
Material combinations, contact plating, magnet protection, fasteners, sealing and cable construction should be reviewed for salt exposure. Waterproof performance alone does not establish corrosion resistance in a marine or salt-contaminated environment.
Which part of an outdoor magnetic connector is most often underestimated?
The cable entry and the mechanical interfaces behind the mating face deserve particular attention. A well-sealed front surface can still fail if repeated cable movement opens the rear seal, if condensation forms inside the enclosure, or if the mounting structure allows the connector to move outside its intended working position.
