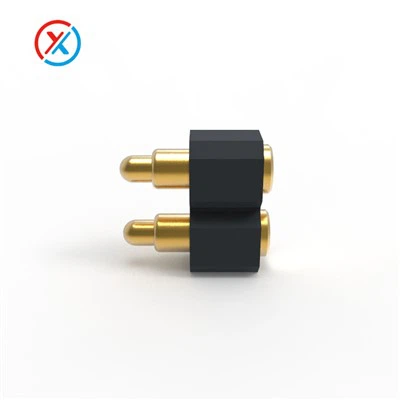

2 Pin Pogo Connector
Your Professional 2 Pin Pogo Connector Supplier
Dongguan Xinteng Electronics Co., Ltd. is a leading high-reliability Pogo Pin connector solution provider in China, integrating R&D, production and sales.
The main solutions include: Pogo pin connector solutions, magnetic connector solutions, pogo pin cable solutions, precision accessories, etc.
Parameter
|
Product model |
Standard sample 2PIN |
|
Mechanical |
|
|
Contact force |
80g士20g at 0.8mm working storke Full storke 1.0mm |
|
Life test |
20,000 Cycles |
|
Electrical |
|
|
Rated voltage |
DC 12V |
|
Rated current |
3A Max |
|
Contact resistance of spring pin |
50 Milliohm Max |
|
Materials |
|
|
Tube/Plunger |
Brass 0.125um Au over 1.5um~2.5um Ni |
|
Spring |
SUS 0.025um Au |
|
Packing |
PE bag / reel packing |
|
Material and coating conform to ROHS and REACH standards |
|
2 Pin pogo connectors are a popular solution for a variety of electronic applications due to their reliability and versatility. They consist of two pins that are held together by a magnetic force, creating a secure and stable connection.
One of the advantages of 2 pin pogo connectors is their durability. They are designed to withstand repeated use and can handle high levels of current without becoming damaged or worn down. This makes them ideal for applications that require a dependable connection, such as in medical devices or industrial equipment.
Another benefit of these connectors is their ease of use. The magnetic force ensures that the pins align properly, making it easy to make a connection even in low light or hard-to-reach areas. And because they are self-aligning, there is less risk of damage to the pins or the device during connection.
In addition, 2 pin pogo connectors are small and compact, making them perfect for use in space-constrained applications. They can be used in portable devices like smartphones and tablets, where space is at a premium but a reliable connection is still needed.
Finally, these connectors offer versatility in terms of customization. They can be designed to meet a specific set of requirements, such as higher current capability or waterproofing. Manufacturers can customize the shape, size, and metal composition of the pins to suit their needs.
Uses Of The 2 Pin Pogo Connector
Most small household electronic devices use a 2 pin pogo connector to connect to power sources. Devices such as lamps, phone chargers, fans, and radios commonly rely on these connectors because they are efficient and cost-effective. The absence of a grounding pin makes the 2 pin pogo connector ideal for low-power devices that don’t require additional safety features.
In lighting, especially with modern LED systems, the 2 pin pogo connector is frequently used. LED strips, for instance, often have connectors with two pins to power them. The compact design of the 2 pin pogo connector allows it to fit seamlessly into slim and minimalistic lighting setups, making it ideal for both residential and commercial use.
Devices used for personal care and grooming, such as electric shavers, toothbrushes, and hairdryers, often use a 2 pin pogo connector. These devices tend to have lower power demands, and the absence of a ground wire is rarely an issue, making the 2 pin pogo connector a perfect match.
In the automotive industry, the 2 pin pogo connector plays a crucial role in connecting various components, such as sensors, lights, and smaller electronics within the vehicle. Its durability and secure connection make it a preferred choice in situations where a simple but effective power connection is required.
Many portable electronic devices like laptops, cameras, and power banks use a 2 pin pogo connector in their charging cables. The compact size and lightweight nature of the 2 pin pogo connector make it easy to carry, especially when traveling. Its universal nature also makes it compatible with most power outlets globally, reducing the need for multiple adapters.
Notes on Using 2 Pin Pogo Connectors
Avoid applying pressure from the side and other non-vertical pogo pin connectors.
1
>>
The battery contacts or matching FPC golden fingers should not be dirty or oxidized.
2
>>
If the pressure is too small and the positive force is insufficient, the impedance will be unstable; if the pressure is too high, it will hit the nozzle and cause the pin.
3
>>
During the assembling process, care should be taken to prevent the nozzle from being injured, which may cause jamming.
4
>>
Avoid contact with the plastic barrier of the assembly and use of the head and nozzle.
5
Logistics
We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc.
The time frame of an order delivery is divided into two parts
Processing time: 7-14 Days
Shipping time: 20~30 Days
Shipping methods
DDP, DAP, EXW, etc.
Shipping fee
The shipping fee will be changed according to every pacel's weight.
