10 Pin Magnetic Connector

The 10-pin magnetic connector has a pin pitch of 2.0 mm and is verified to achieve 10,000 mating cycles. Its rated electrical performance is DC 24V, 1.5A–3A. Both its materials and surface plating comply with RoHS and REACH environmental standards. In addition, we support customized waterproof, high-current, corrosion-resistant, miniaturized, and price-competitive magnetic connectors, providing 3D design drawings within 24 hours and bulk orders within 7-25 days. We offer products that combine cost advantages with high quality, reliability, and security, and support customization services.

Send Inquiry

Product Introduction

Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 10 pin magnetic connector in China, featured by quality products and good service. Welcome to wholesale bulk durable 10 pin magnetic connector in stock here from our factory. Also, customized service and OEM&ODM service are available.

Description

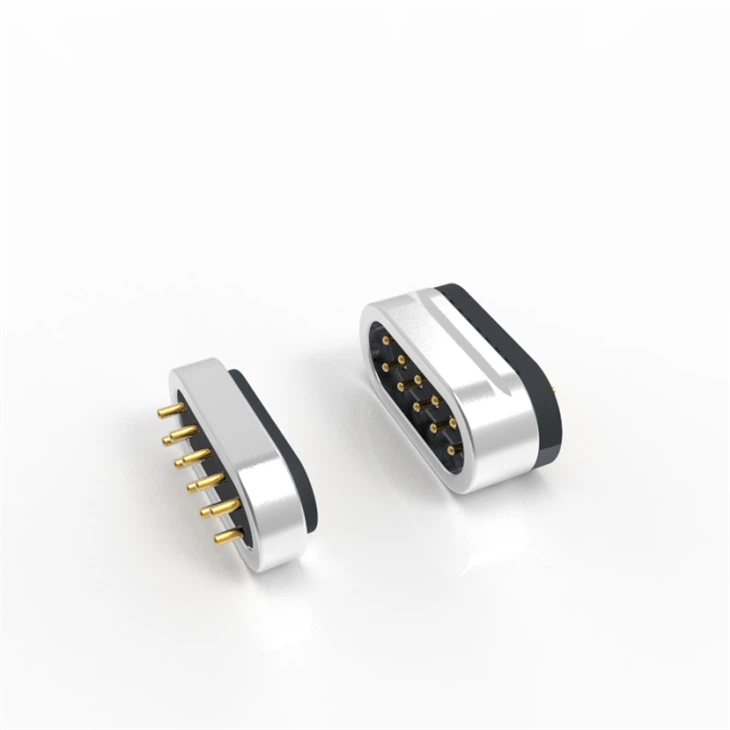

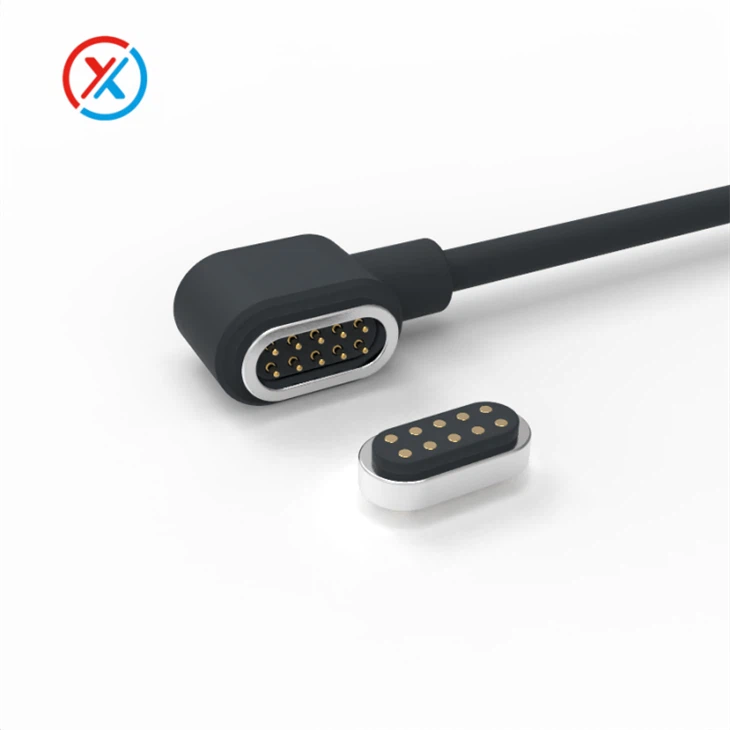

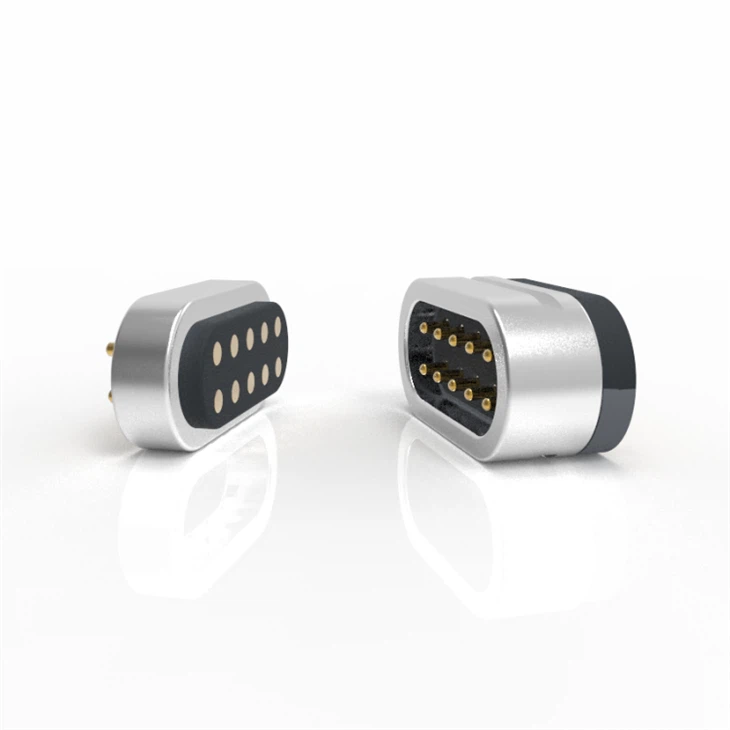

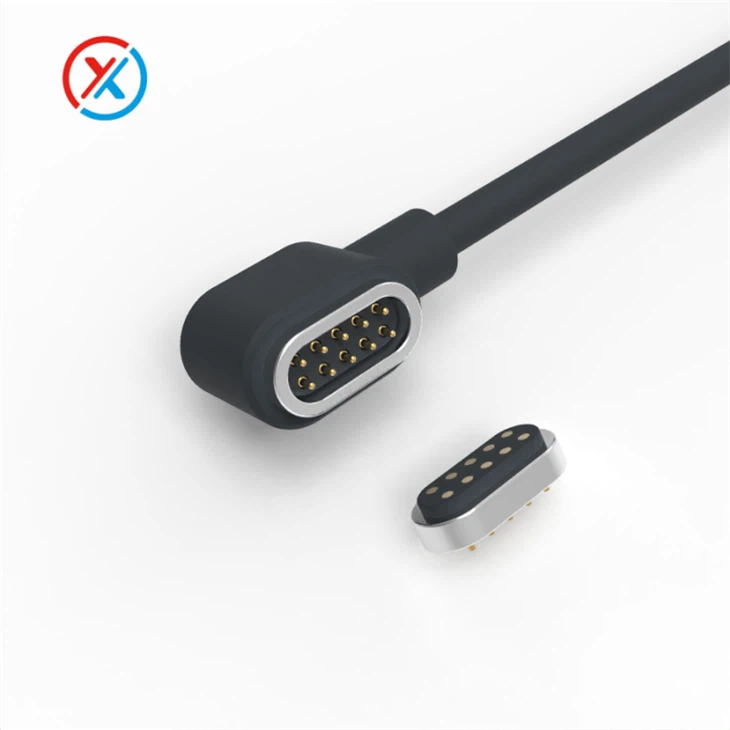

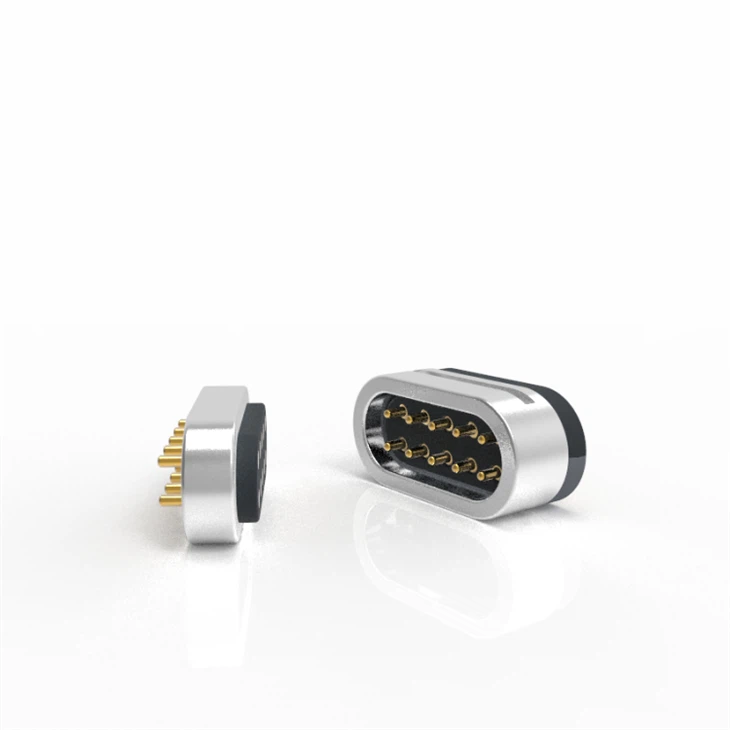

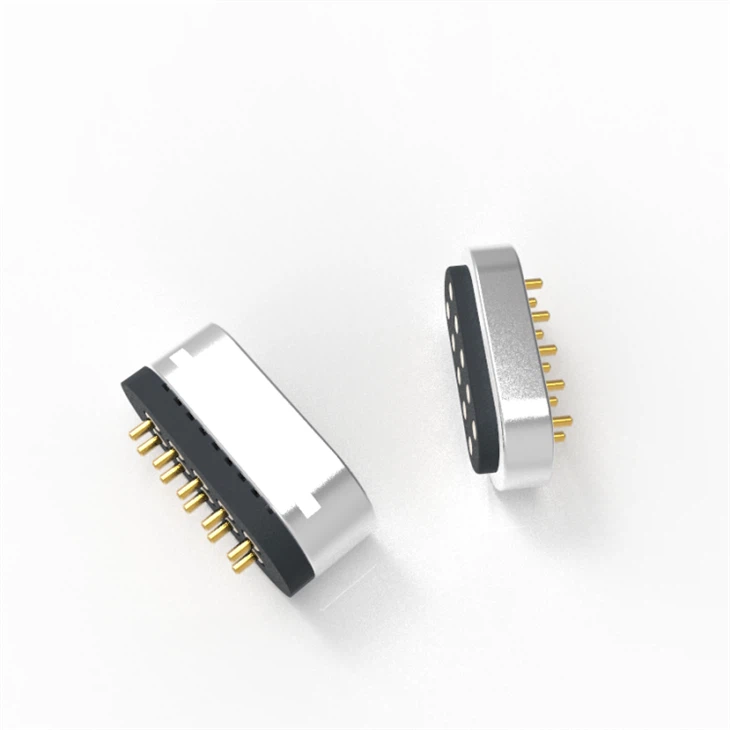

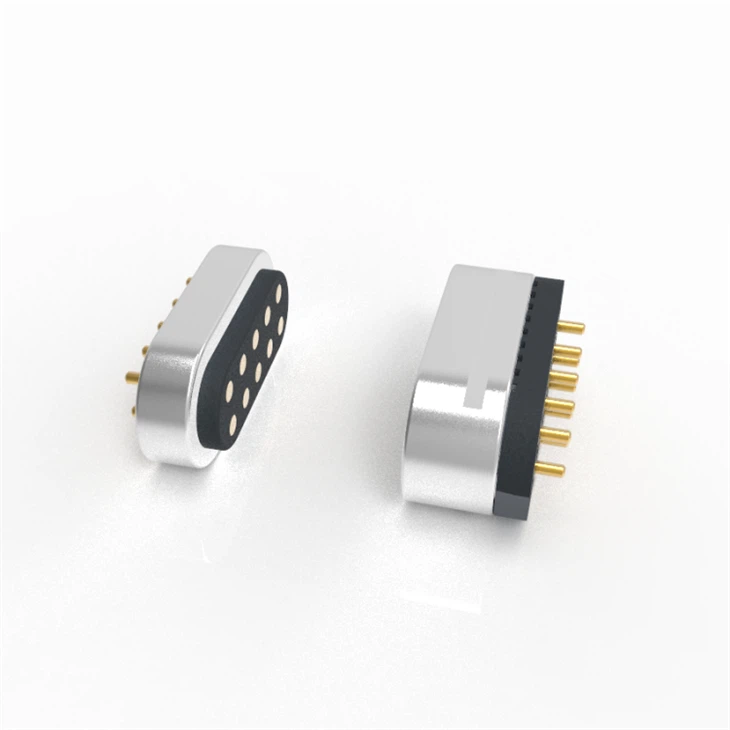

The 10 pin magnetic connector is suitable for small, space-constrained, and low-current applications. The connector is 14.0mm long and 4.70mm wide, with a 2.0mm pogo pin pitch and a lifespan of up to 10,000 cycles. The racetrack-shaped magnetic connector has an attraction force of over 600g and can be used in devices requiring current, signal, and data transmission, such as medical devices, robots, and drones.

Parameters of a 10-pin magnetic connector

Product model	RM-1222
Contact force	40g±10g at 0.8mm working stroke Full stroke 1. 0mm
Life test	10,000 cycles
Magnetic Adsorption Force Test	600g±20%
Rated voltage	DC 42V
Rated current	1.5A-3A Max
Contact resistance of spring pin	50 milliohm Max
Operation Temperature	-25℃to +60℃
Pogo pin	Gold-plated brass
Housing	HTN
Magnet	N52
Packing	PE bag / reel packing
Material and coating conform to ROHS and REACH standards

Advantages of Choosing Us

Dongguan Xinteng Electronics Co., Ltd. is a leading manufacturer of magnetic connectors in China.

15 years of R&D experience

With 15 years of R&D and manufacturing experience, Xinteng has provided over 2000 solutions to global clients and obtained over 100 patent certificates. We serve over 1000 clients worldwide and maintain stable partnerships with well-known enterprises.

2000+ solutions

We have a research and development team of 15 experienced engineers who focus on special application scenarios such as innovation, waterproofing, corrosion resistance, miniaturization, high current, and long lifespan. Our products have been applied in major fields such as medical devices, wearable devices, and aerospace.

99.8% qualification rate

Xinteng strictly adheres to the ISO quality management system, implementing rigorous quality control at every stage, from raw material procurement to finished product shipment, and conducting 100% full inspection of its products.

Fast delivery

Our daily production capacity reaches 100,000 pieces, supporting both small and large batch orders, and we offer product customization services. 3D design solutions can be completed within 1 day, customized samples take approximately 7 days, and bulk orders take 7-25 days.

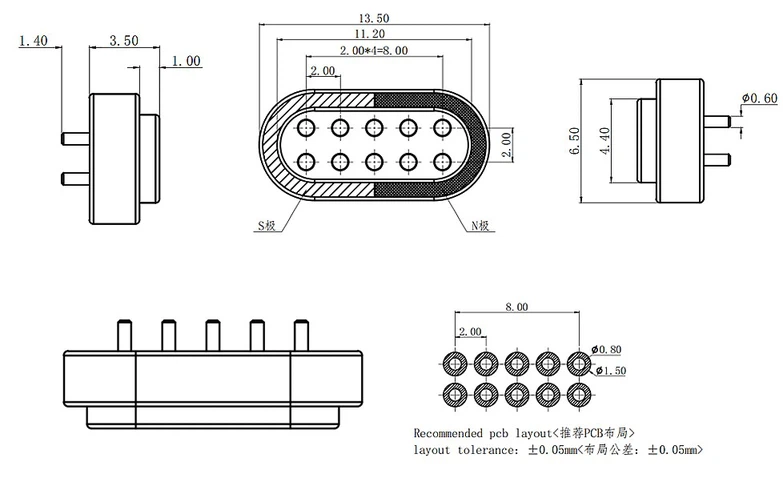

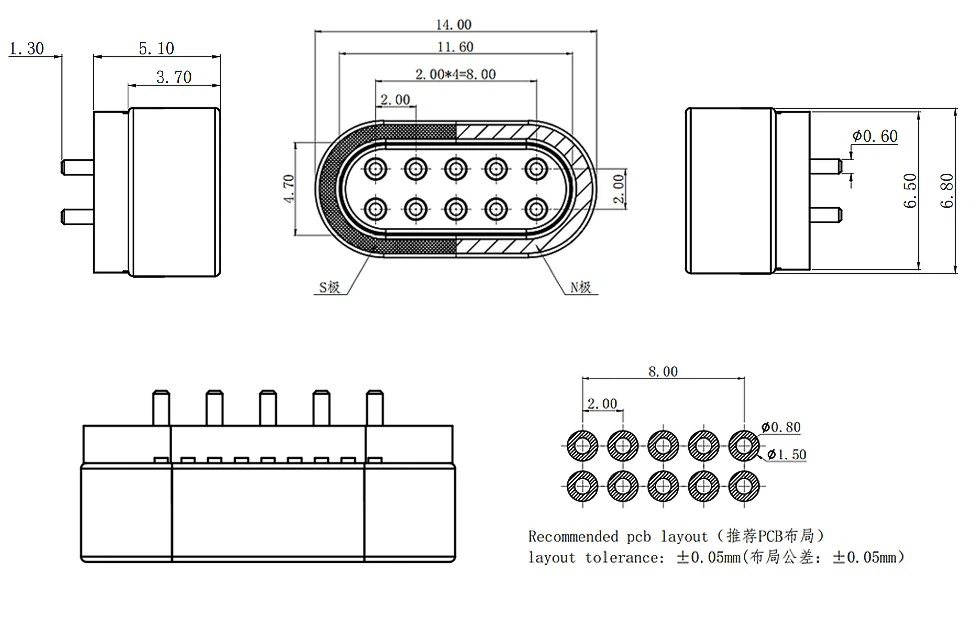

10 pin magnetic connector drawing

Male magnetic connector

Female magnetic connector

Support OEM & ODM services

Custom shapes and structures: round, irregular, square, racetrack-shaped, etc.

Rated voltage/current: ≤240V, ≤60A.

Magnetic attraction force: 150g-3000g.

Insulating plastic materials: HTN UL94 V-0, silicone, etc.

Protection level: Up to IPX8.

Replacement ability: HDMI, USB 2.0/3.0, RJ45, pin bus, DC power interface, D-SUB, etc.

Female end assembly methods: welding wire, DIP, 90° bending, adhesive molding, etc.

Certifications

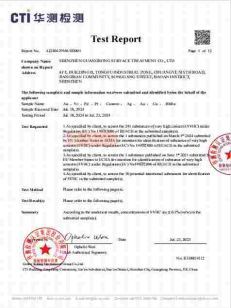

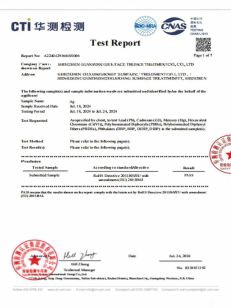

ISO 9001, RoHS, REACH and more than 100 patent certificates.

ISO

RoHS

RoHS

Patent

Patent

Patent

What question do you want to know?

If you have any further questions about our product, customization, or services, please contact our customer service team. We will reply to you within 24 hours.

Do you have an ISO certificate?

Yes, we have obtained ISO9001

Do you design magnetic connectors according to our equipment?

Yes, we always manufacture according to the drawings, requirements, or technical documents provided by our customers.

What after-sales service do you provide for bulk orders of custom magnetic connectors?

A: We provide installation instructions and guidance, and we can also customize packaging according to customer requirements.

If the custom magnetic connector sample fails testing and requires modification, will there be an additional modification fee?

If the mold has not yet been made, you only need to pay the sample fee. If the mold has already been made, a mold modification fee will be required.
