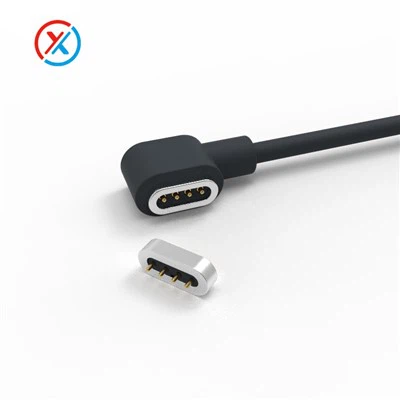

4 Pin Magnetic Cable
Your Professional 4 Pin Magnetic Cable Supplier
Dongguan Xinteng Electronics Co., Ltd. is a leading high-reliability Pogo Pin connector solution provider in China, integrating R&D, production and sales.
The main solutions include: Pogo pin connector solutions, magnetic connector solutions, pogo pin cable solutions, precision accessories, etc.
Why Choose us
Quality Assurance
Our products comply with the EU RoHS, REACH, and HF environmental standards, and we have accumulated extensive experience in the fields of pogo pins and pogo pin charging cables.
Comprehensive Patent Portfolio
We offer more than 2000 tailored solutions to customers and have obtained over 100 product patents.
Customization Services
We provide personalized customization services to meet the specific requirements of diverse application scenarios.
Parameter
|
Product model |
RC 1273 |
|
Mechanical |
|
|
Contact force |
40g±20g At 0.8mm working storke |
|
Life test |
10,000 Cycles |
|
Adsorption capacity test |
The parent docking adsorption is 400g±20% |
|
Electrical |
|
|
Rated voltage |
DC 12V |
|
Rated current |
1A Max |
|
Contact resistance of spring pin |
50 Milliohm Max |
|
Voltage withstand test |
100V AC,0.5mA max for 1 minute |
|
Materials |
|
|
Operation Temperature |
-25℃ to +60℃ |
|
Salt Spray |
24H |
|
Pogo pin |
Gold-plated brass |
|
Packing |
PE bag / reel packing |
|
Material and coating conform to ROHS and REACH standards |
|
Single cables can be customized with a uniform jacket color, while multi-core cables may feature color-coded conductors—such as red for positive and black for negative—to facilitate easy identification during installation and maintenance.
The cable stripping length is determined according to customer specifications. A typical stripping length ranges from 5 to 10 mm, which ensures optimal preparation for soldering or crimping operations.
We offer aluminum foil shielding for low-frequency applications and braided mesh shielding for high-frequency environments, both designed to effectively minimize electromagnetic interference and ensure signal integrity.
Benefits of 4 Pin Magnetic Cable
Effortless Connectivity
Magnetic connectors attach with minimal effort. Therefore, there’s no fumbling with the orientation, and users with limited dexterity find them especially helpful.
Less Wear and Tear
Since the magnetic connection absorbs physical stress, the device’s internal port stays protected. This ultimately leads to a longer device lifespan — particularly important for expensive electronics.
Enhanced Safety
If the cable is accidentally yanked, it detaches safely without pulling the device with it. As a result, it reduces the risk of falls or damage — a big win for households with pets or children.
Data Transmission
Thanks to the 4-pin setup, many models also support stable data transfer. So you’re not limited to charging — file syncing and data communication are possible too.
Application of 4 Pin Magnetic Cable
Smartwatches and Bracelets
The most common application is charging and data sync for smartwatches, fitness trackers, and children's smart bracelets.
Bluetooth Devices
These cables are used for charging and connecting devices like Bluetooth headsets.
Portable Devices
They are used for charging other portable electronic devices, including phones, headphones, and power banks.
Transportation
Whether it is air freight, express delivery, or sea freight, we can arrange shipments according to the time required by customers. We help customers inquire about the best rates and arrange the delivery of your goods in the most economical way. This allows you to control the schedule of the entire project to meet seasonal cargo demand.
