Pogo Pin Charger Cable

Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of pogo pin charger cable in China, featured by quality products and good service. Welcome to wholesale bulk durable pogo pin charger cable in stock here from our factory. Also, customized service and OEM&ODM service are available.

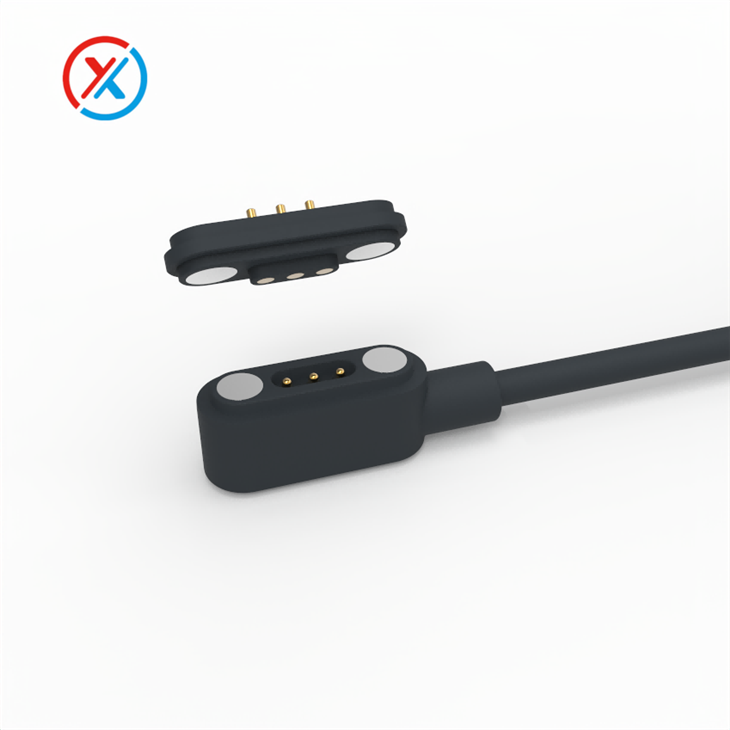

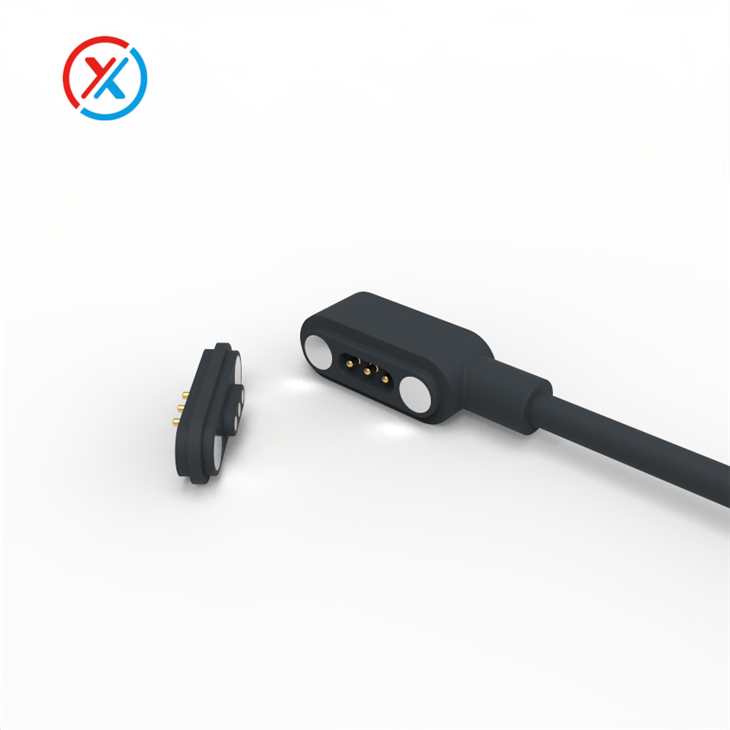

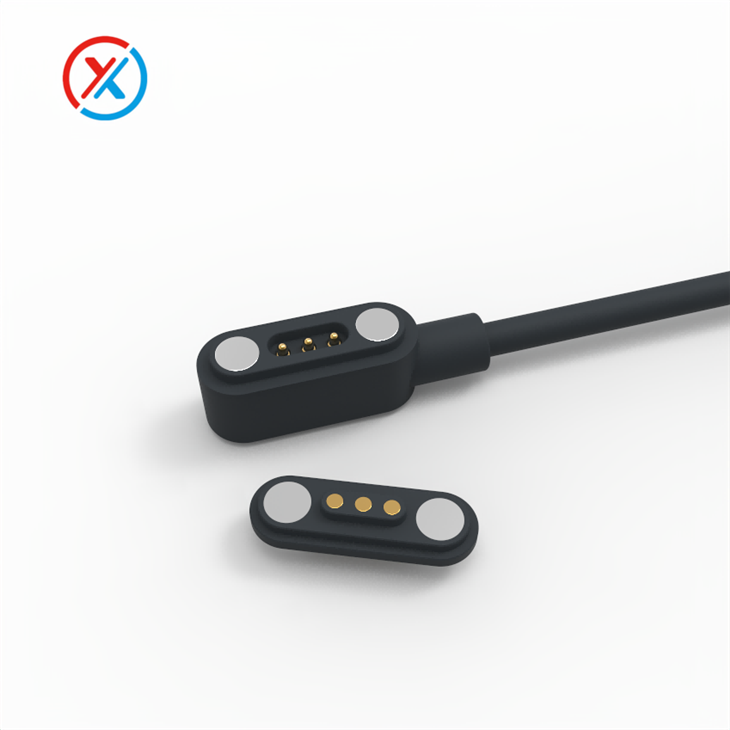

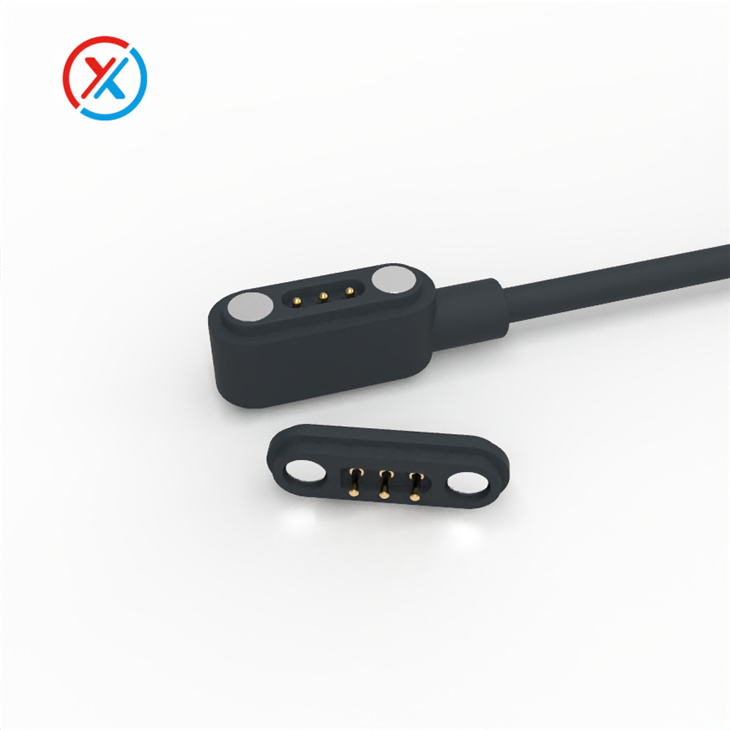

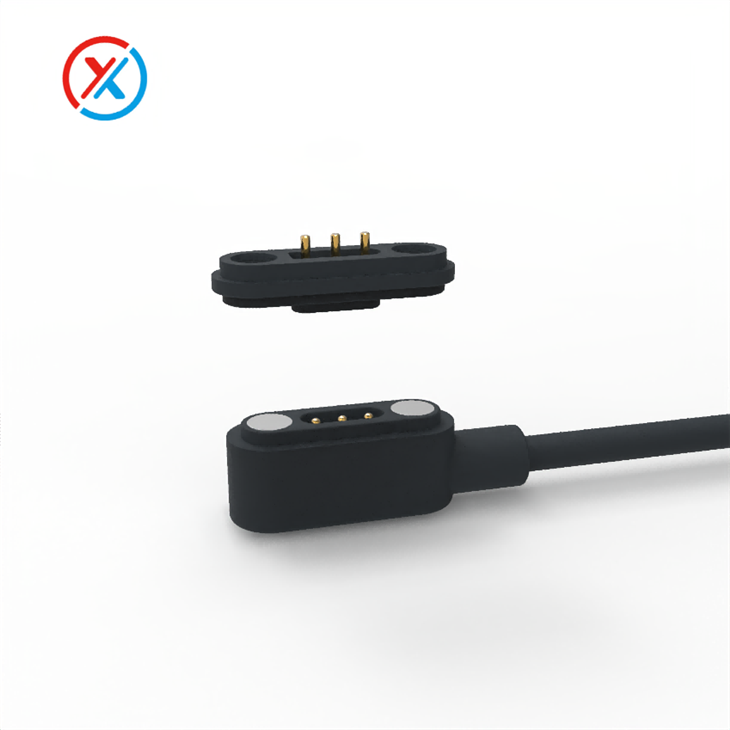

This 3-pin magnetic charging cable and waterproof female connector features a magnetic force designed at 550g ± 20%, ensuring quick and accurate automatic attachment and positioning of the male and female connectors without being too tight to make disassembly difficult. In actual use, the attachment feels very stable, and the maximum current connected can reach 5A, sufficient for most medium to high power charging needs. This is a mature solution we commonly use when supplying power to small and medium-sized smart devices, testing instruments, and electronic products. Characterized by durability, waterproofing, and high performance, this product has been widely used in consumer electronics, smart homes, and various other industries, and has been well-received by customers and end-users.

If you are looking for a highly reliable waterproof magnetic connection solution, this 3-pin magnetic charging cable and female connector combination is well worth considering. Please feel free to contact us for detailed specifications or a quote. We also provide customized design and technical support based on your application needs.

Structurally, the male connector is a magnetic 3-pin pogo pin charging cable with a 2.5mm pogo pin spacing. It features a high-elasticity spring and precision gold-plated pin design, maintaining stable contact resistance and elasticity even after 10,000 insertion/removal cycles.

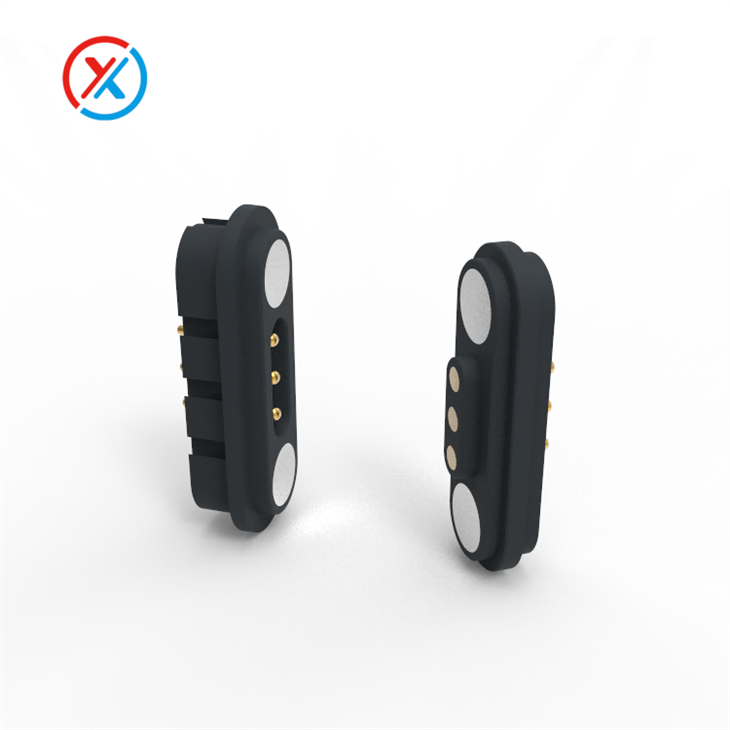

The female connector uses an in-mold molding method, featuring a fully sealed waterproof structure that achieves an IP68 protection rating, effectively preventing dust and liquid ingress. Internally, it uses corrosion-resistant materials, making it suitable for outdoor equipment or humid environments.

What Products We Offer

Pogo Pins: As a key component in charging connection structures, they enable pluggable connections and electrical contact.

Pogo Pin Connectors: Combining multiple Pogo pins into pluggable modules or connectors for device testing, inter-module connections, charging/signal transmission, etc.

Magnetic Connectors and Magnetic Charging Cables: Utilizing magnetic interfaces and Pogo pins, these provide user-friendly, quick-pluggable connections suitable for smart homes, wearable devices, power banks, etc.

Precision Hardware Accessories: Including claw pins, mold parts, connector metal accessories, etc., providing comprehensive connector solutions.

Our Capabilities
Closed-Loop Capability from R&D to Manufacturing: We focus on integrated R&D, production, and sales. This means we can cover everything from product concept, structural design, process development, mold manufacturing, to mass production, which is highly beneficial for shortening development cycles and reducing customer communication costs.

Summary Services: Xinteng provides comprehensive connector solutions, saving customers the trouble of designing, selecting, and structurally testing connectors themselves.

• Main Components and Working Principle of  Cables

The core materials of magnetic cables typically include a copper core wire, a PVC or thermoplastic elastomer outer sheath, and neodymium iron boron magnets. The copper core provides excellent conductivity, while the outer sheath material enhances abrasion resistance and flexibility. Magnets are used for attraction and fixation to ensure connection stability. Its working principle involves rapid connection through magnetic attraction, while the internal cable transmits electrical or data signals.

• Synthesis Methods and Molding Processes

The synthesis process of magnetic cables includes steps such as wire stranding, insulation wrapping, and magnet embedding. Typically, the wire is made of multiple strands of fine copper wire stranded together to improve its flexibility and tensile strength. The insulation layer is coated onto the outer layer of the wire through an extrusion process, and the magnet is fixed to the interface by injection molding or embedding. The molding process must ensure that all components are tightly connected to avoid loosening or short circuits.

Understanding the maintenance, testing, and technical principles of magnetic cables can not only extend their service life but also improve the user experience. With technological advancements, magnetic cables will demonstrate their unique advantages in more fields.
