Spring Loaded Electrical Connectors

Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of spring loaded electrical connectors in China, featured by quality products and good service. Welcome to wholesale bulk durable spring loaded electrical connectors in stock here from our factory. Also, customized service and OEM&ODM service are available.

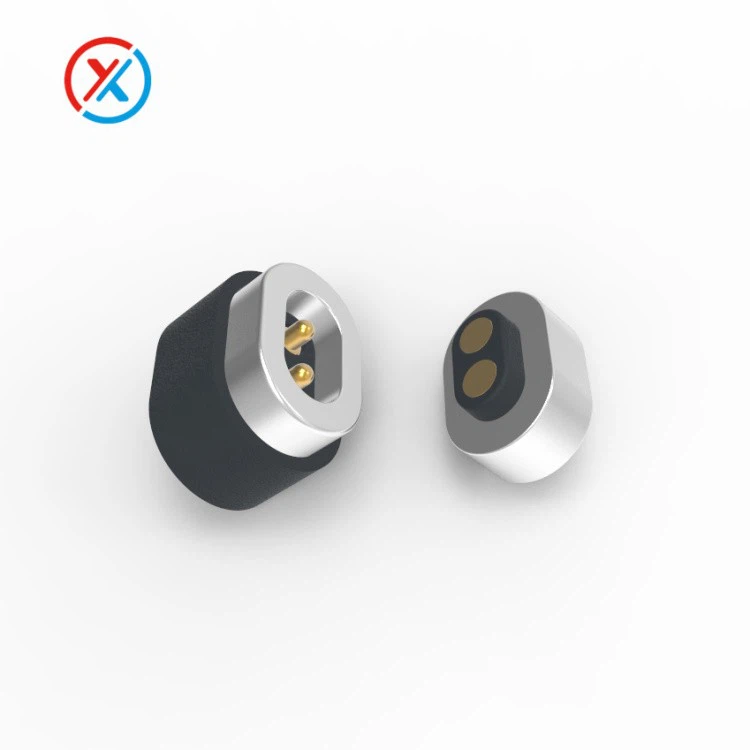

The ring-shaped magnetic snap-in connector that can be applied to micro medical devices has a total length of 8.15 mm, which breaks through the space limitation. It uses N52 magnets with an 800g adhesive force, ensuring that the connector does not shift in the vibrating usage environment and maintains a stable current connection.

The gold-plated layer of the pogo pin, along with a 2.0mm contact spacing, can achieve a -70dB signal isolation degree under a 2A current. By using this male-female connector, it can shorten the wider time of the instrument module and completely avoids the risk of metal debris from traditional connectors.

The total height of the spring-loaded electrical connector is 6.6 mm, and the length of the magnet is 7.0 mm. The total length of the plastic is 8.15mm, and the bottom of the plastic is designed with a notch on the surface for an easy installation.

Customizable Shape and Structure

Can be manufactured in various shapes and sizes, including round, square, rectangular, and racetrack-shaped, to match the installation space and appearance design of different equipment.

Multiple Cable Materials Available

Including PVC, TPE, and silicone, each with different flexibility, temperature resistance, and feel, allowing selection of the most suitable material based on the application environment.

Multiple Cable Shapes Supported

Cables available in round, braided, and flat shapes to meet the requirements of different products in terms of appearance, bending resistance, and usage habits.

IP68 Waterproof Performance
Meets the requirements for deep immersion and harsh environments, suitable for outdoor equipment or applications requiring immersion protection.

Wide Magnetic Attraction Range

Adjustable to design, ranging from 150g to 3000g to match different connection strengths and user experience.

Rated Voltage and Current Range
Up to ≤120V and ≤40A, covering a wide range of applications from low-power signals to high-current power supplies.

Flexible connection direction

Can be designed at 90°, 180°, or other angles, suitable for devices with limited space or requiring special wiring methods.

Compatible with various interface types

Such as Ihammer O adapters, USB 2.0/3.0, HDMI, RJ45, D-SUB, pin-type female connectors, DC power interfaces, etc., facilitating device functionality expansion.

Diverse female assembly methods

Supports SMT, DIP, 90° bends, wire bonding, encapsulation, etc., allowing flexible selection based on product structure and strength requirements.

Comprehensive female positioning structure design

Including grooves, sealing rings, clamping locks, positioning ears, positioning pins, in-mold injection molding, and other solutions to improve mating stability and blind mating success rate.

With years of industry experience and profound technical accumulation, XINTENG has become a global leading supplier of magnetic connectors and Pogo Pin connectors. Our products have passed multiple certifications such as ISO, CE, and ROHS, and all our product lines comply with international quality standards. Moreover, we have a complete after-sales service system, enabling us to provide timely and professional technical support to global customers to solve various problems they encounter.
