Magnetic Pogo Pin Connector
Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of magnetic pogo pin connector in China, featured by quality products and good service. Welcome to wholesale bulk durable magnetic pogo pin connector in stock here from our factory. Also, customized service and OEM&ODM service are available.
Magnetic pogo pin connector

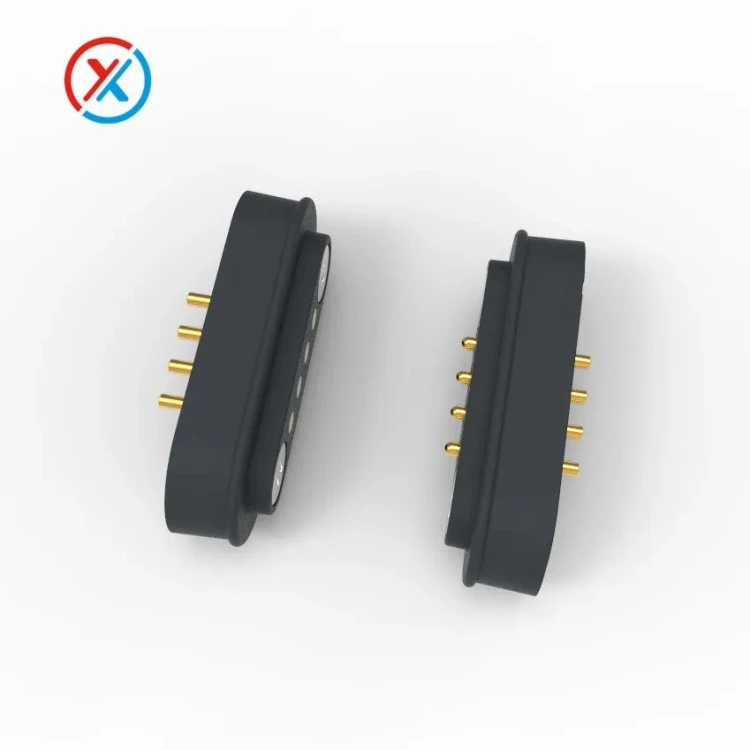

This DIP 4-pin connector is made of halogen-free and lead-free materials. After 8 hours of steam aging, its impedance remains below 20 mΩ, far exceeding the standard of 20Ω.
The N52 strong magnetic 700g adsorption design can enhance the stability of the connector in complex environments by 92%. Moreover, this product passes a 48-hour salt spray corrosion test. The spring loaded contacts pins is gold-plated on brass surface, enabling this magnetic charging connector to have corrosion resistance, water resistance and stability.
Product Parameters
|
Product model |
RM 1501 (Custom products) |
|
Mechanical |
|
|
Contact force |
50g+20g at 1.0mm working stroke |
|
Life test |
10,000 cycles |
|
Adsorption capacity test |
The female docking adsorption is 700g ±20% |
|
Electrical |
|
|
Rated voltage |
DC 5V |
|
Rated current |
2A Max |
|
Contact resistance of spring pin |
20 milliohm Max |
|
Voltage endurance |
500V AC MIN |
|
Insulation impedance |
1000M2 MIN |
|
Steam aging |
8H |
|
Protection level |
IP55 |
|
Materials |
|
|
0peration Temperature |
-40℃ to +85℃ |
|
Pogo pin |
Gold-plated brass |
|
Salt Spray Test |
48H |
|
Housing |
HTN |
|
Magnet |
N52 |
|
Packing |
PE bag / reel packing |
|
Material and coating conform to ROHS and REACH standards |
|
Product details
The adhesive on the magnetic pogo pin connector covers the magnet and is positioned below the plastic surface. Additionally, there is a notch design at the S pole of the appearance surface, which facilitates production and installation.
Customization Process
- The customization process for magnetic connectors typically includes the following steps:
Requirements Confirmation: Clarify customer needs and understand usage scenarios, operating environments, and performance requirements.
Design Proposal: Provide a design proposal based on customer requirements, including details on appearance, structure, functionality, and dimensions.
Prototype Production: Produce samples based on the design and conduct testing and verification.
Testing and Optimization: Subject samples to various environmental and performance tests to optimize the design and ensure quality and stability.
Mass Production: After testing and confirmation, mass production begins to ensure stable supply.
Post-sales Support: Provide installation guidance, technical support, and after-sales service.
