2 Pogo Pins Connector
2pin pogo connector
pogo pad
pogo pin connector
pogo pin pad

2 Pogo Pins Connector

We offer standard pogo pin connectors ranging from 1 to 128 pins for you to choose from, without the need for additional custom molds or fixtures. Our products are competitively advantageous in both quality and price. If you’re interested, please contact us to obtain other connector specifications and drawings.

Send Inquiry

Product Introduction

Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 2 pogo pins connector in China, featured by quality products and good service. Welcome to wholesale bulk durable 2 pogo pins connector in stock here from our factory. Also, customized service and OEM&ODM service are available.

Description

Dongguan Xinteng Electronics Co., Ltd. is a high-quality Chinese manufacturer of bent 2-pogo pin connectors. Utilizing environmentally friendly halogen-free and lead-free materials, the company develops, produces, and sells pogo pins, pin sockets, pogo pin connectors, and magnetic connection solutions. It has provided solutions for over 2000 projects to more than 1000 customers worldwide.

Products Description

Product model	RT-Standard 2 Pogo Pins Connector
Contact force	70g+20g at 0.8mm working stroke Full stroke 1.0mm
Life test	20,000 cycles
Rated voltage/Rated current	DC 12V/1A-3A
Operation Temperature	-25℃ to +60℃
Contact resistance of spring pin	50 milliohm Max
Temperature tolerance	260℃
Delivery time	3-25 days
Number of pins	1 pin to 128 pins
spacing	2.0mm and 2.54mm
Customization supported	Current, voltage, spacing, size and structure, waterproofing, dustproofing, corrosion resistance, vibration resistance, contact resistance, coating, etc.
Material and coating conform to RoHS and REACH standards

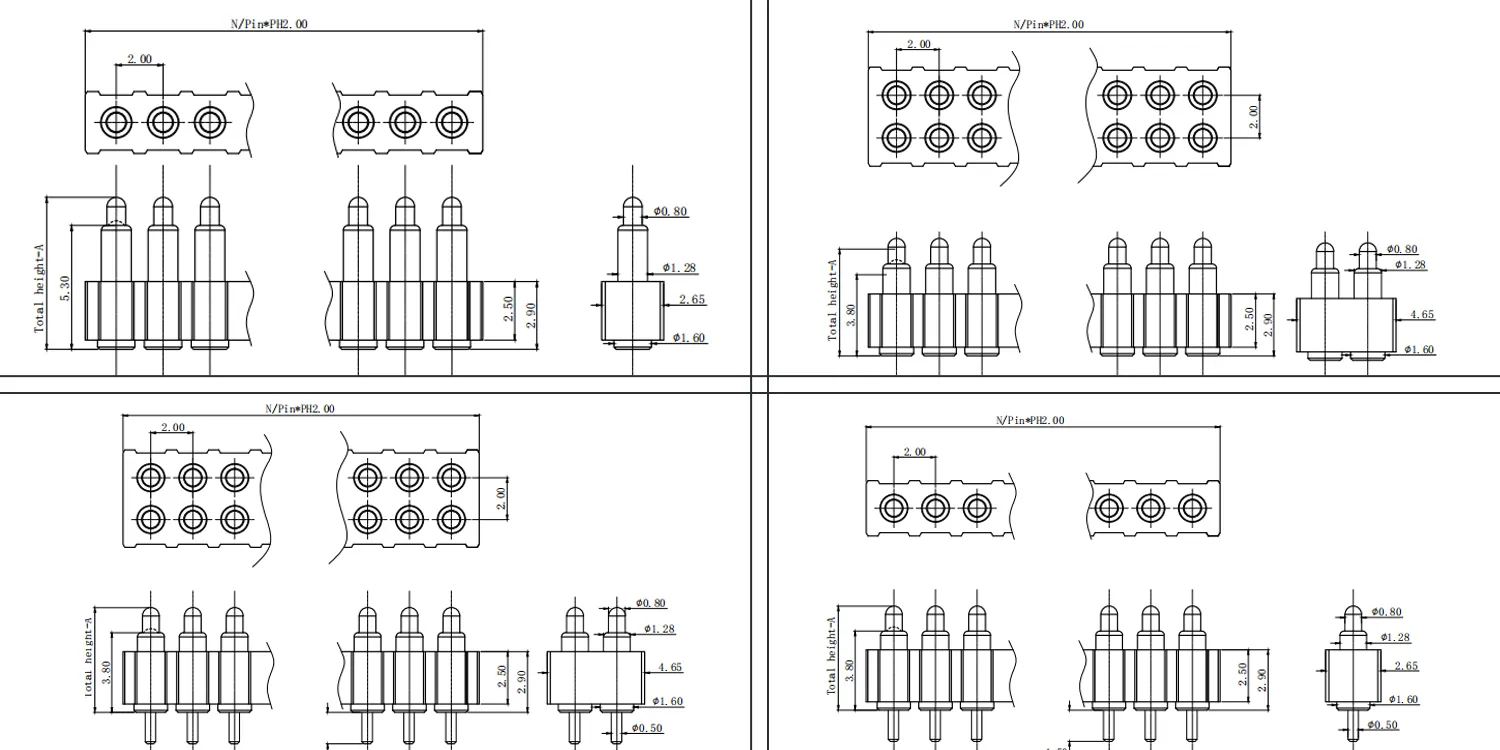

drawing

pogopin connecctor

application

2 Pogo Pins Connectors enable current transfer and can be used in compact electronic devices. Below are some application scenarios for our connectors, including but not limited to...

Automotive Electronics
Consumer Electronics
Wearable Devices
LED Lighting
Small Home Appliances
Security Equipment
Energy Storage
Internet of Things

Customization supported

Material: Pogo pin (C3604, C6801, stainless steel, ceramic beads, etc.). Insulating plastic (high temperature resistant HTN).

Form and Structure: Right angle, SMT, dual contact, DIP, integrated, solder wire structure, etc.

Rated Voltage and Current: ≤250V, ≤60A.

Flexibility: ≤15g.

Connection Methods: 90°, 180°, or other angles.

Female Connector Positioning Methods: Positioning ears, raised and recessed grooves, sealing rings, positioning posts, clamping locks, in-mold injection molding.

Female Connector Assembly Methods: DIP, rubber encapsulation, solder wire, 90° bending, surface mount, etc.

Pogo pin connector-1

Who are we?

Dongguan Xinteng Electronics Co., Ltd. is a source factory integrating design, R&D, and production of 2 Pogo Pins Connector solutions. The factory covers an area of 2700 square meters, has 15 R&D personnel, and holds over 100 national patents. Currently, the company offers a variety of products for your selection and can provide technical services for your product design and development. Let us be your most reliable and trustworthy supplier.
