Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of spring loaded pins electronics in China, featured by quality products and good service. Welcome to wholesale bulk durable spring loaded pins electronics in stock here from our factory. Also, customized service and OEM&ODM service are available.

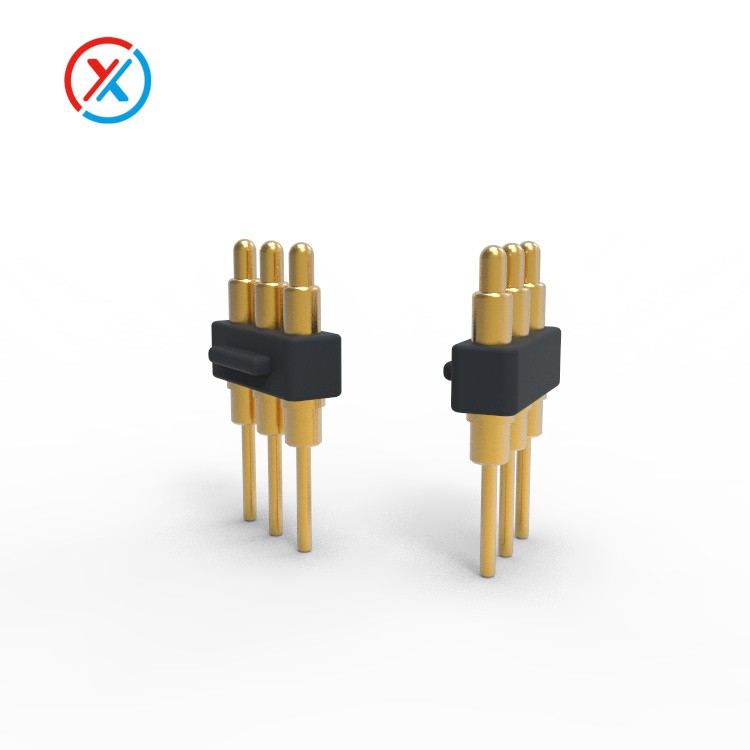

An independent shielding channel is integrated within the 12.5mm pogo pin height. When transmitting 1A signals, the crosstalk suppression can reach -60dB. The accuracy of the combination of brass alloy pins and halogen-free insulating plastic slots is ±0.005mm. The positioning accuracy remains at the μm level even after 10,000 plug-ins and unplugs.

Applying this 3-pin connector to medical CT equipment can reduce the image artifact rate by 42%. It is the development of technology that has created the modular demand for medical imaging equipment and given rise to this 3-pin connector with positioning slots.









The total height of the spring loaded pins electronics is 12.6 mm, with a tolerance within 0.1 mm. The insulating plastic is made from environmentally friendly materials, and the plastic surface is designed with slots for easy production and installation.







• Physical Structure

Common pin configurations include SMT (Surface Mount Technology), DIP (Dual In-line Package), right-angle bend, double-ended sturdy versions, wire bonding, and integrated pin and housing designs. The most suitable configuration can be selected based on the application and installation environment.

• Material

Commonly used materials for pins include C3604 and C6801.

• Elasticit

Elasticity is generally controlled below 15g to ensure good contact pressure without excessive pressure on the terminals.

• Rated Voltage/Current

Applicable voltage levels up to 120V and current capacity up to 40A are supported. Actual values ​​will be adjusted based on pin size, material, plating thickness, and heat dissipation conditions.

• Connection Method

Connection directions can be designed at 90°, 180°, or other specified angles to adapt to different spatial layouts or customer wiring configurations.

• Female Terminal Assembly Methods

Common female terminal structures include DIP, right-angle bend, wire bonding, and encapsulated designs. Different structural designs can meet the needs of different applications.

• Female connector positioning methods

Common positioning solutions include groove and recess structures, waterproof sealing rings, clamping latches, positioning ear designs, positioning post structures, and in-mold injection molding. The purpose of these positioning methods is primarily to ensure the connector's accurate positioning during assembly, prevent loosening during long-term use, and improve the overall waterproofing, dustproofing, and structural stability of the connector.







Since its establishment, XINTENG has relied on its strong technical R&D team and comprehensive quality management system to continuously provide global customers with high-quality products and one-stop solutions. Our products cover magnetic connectors, Pogo Pins, and a variety of other electronic connection products, which are widely used in all industries and have received recognition.
