10 Pin Magnetic Cable Connector
Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 10 pin magnetic cable connector in China, featured by quality products and good service. Welcome to wholesale bulk durable 10 pin magnetic cable connector in stock here from our factory. Also, customized service and OEM&ODM service are available.
Description
Leading Manufacturer of 10 Pin Magnetic Cable Connectors Worldwide / Source Factory - Dongguan Xinteng Electronics Co., Ltd.
We use halogen-free and lead-free environmentally friendly materials for production, ensuring stability, durability, safety, and reliability, along with a competitive price advantage. Feel free to contact us for the latest prices and 3D model diagrams.

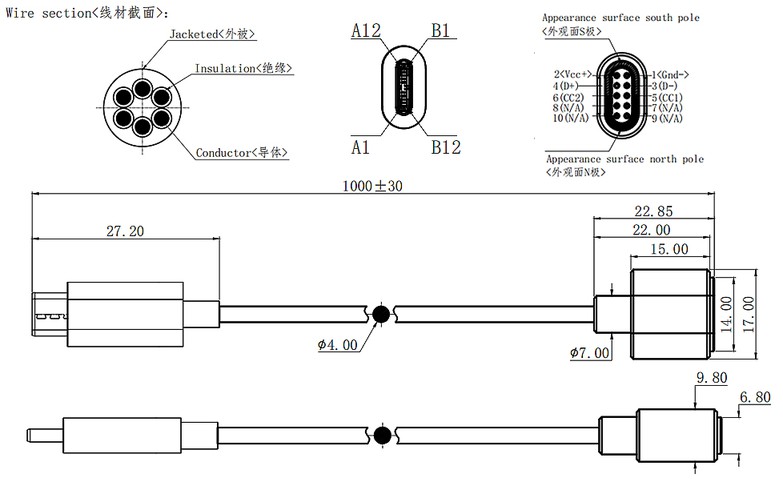

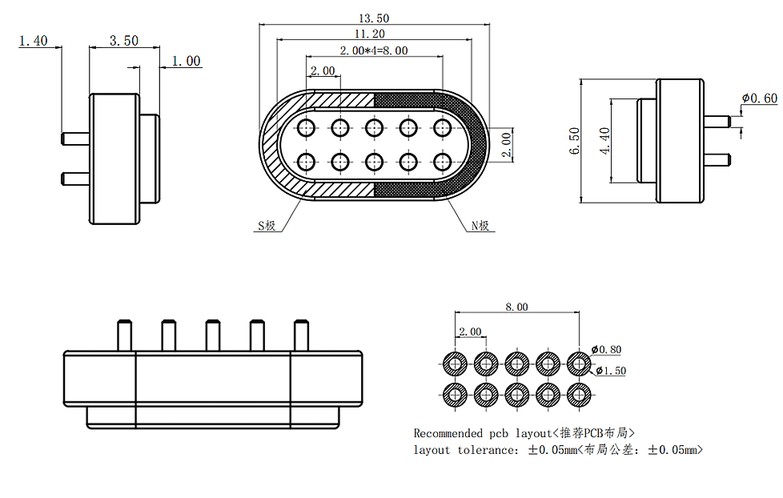

Parameters and drawings
| Product model | RC-1222 |
| Contact force | 40g±10g at 0.8mm working stroke Full stroke 1. 0mm |
| Life test | 10,000 cycles |
| Magnetic Adsorption Force Test | 600g±20% |
| Rated voltage/Rated current | DC 12V-42V/1A-3A Max |
| Contact resistance of spring pin | 50 milliohm Max |
| Operation Temperature | -25℃to +60℃ |
| Pogo pin/Housing/Magnet | Gold-plated brass/HTN/N52 |
| Delivery time | 5-25 days |
| Package | Bubble wrapping / tape wrapping / bubble bag wrapping |
| Custom magnetic connectors | We offer customized solutions that support compact construction, dust and water resistance (IPX8), high current (5A-30A), and 100,000 cycles of service life |
| Material and coating conform to RoHS and REACH standards | |
Custom magnetic cable
Connection Types: Straight Cable, Right-Angle Cable
Shapes: Rectangular, Round, D-Shape, Custom Shapes, etc., with size and shape customization based on requirements
Rated Current and Voltage: 30A current, <250V
Protection Level: Up to IPX8
Materials: Brass, Stainless Steel, Coatings (Gold-plated, Silver-plated, Nickel-plated, etc.), Insulating Plastic HTN, Magnet N52, etc., with material selection based on customer requirements
Lifespan: 5,000 to 100,000 cycles
Other Customization Options: Pogo pin stroke, resistance, magnetic force, operating temperature, etc. Magnetic cables and connectors can be customized according to application scenarios.
Advantages of Choosing Us
Dongguan Xinteng Electronics Co., Ltd. is a leading manufacturer with over 15 years of professional experience, specializing in 10 Pin Magnetic Cable Connector, magnetic connectors, and custom connectivity solutions. Our products are made with environmentally friendly materials and undergo strict quality control to ensure durability and performance. We provide custom solutions to meet the diverse needs of industries such as smart home, industrial equipment, medical devices, automotive electronics, and wearable devices. Choose Xinteng for high-quality, competitive connectivity solutions.
Our Certificate
ISO 9001
Patent
RoHS
FAQ
Q: What are the main advantages of your 10 pin magnetic cable connector?
A: They enable current, signal, and data transmission; are highly durable, with up to 10,000 mating cycles and a magnetic force exceeding 600g.
Q:What is the protection rating of your connectors?
A: The protection rating reaches up to IPX8, ensuring use in humid, water-immersed environments, suitable for various harsh conditions.
Q: What is the lead time for custom orders?
A: Sample delivery time is approximately 5 days, depending on the complexity of the customization. Delivery time for bulk orders is 7-25 days.
