Magnetic Connector PCB

This rectangular magnetic connector features a 2.54m pogo pin spacing, has passed 10,000 cycles of life testing, and a 24-hour salt spray test. It has a rated voltage of 12V DC, a maximum current of 2A, a maximum single-pin contact impedance of 50 milliohms, and operates stably in temperatures ranging from -25°C to +80°C.

Send Inquiry

Product Introduction

Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of magnetic connector pcb in China, featured by quality products and good service. Welcome to wholesale bulk durable magnetic connector pcb in stock here from our factory. Also, customized service and OEM&ODM service are available.

Product Description

The magnetic connector PCB has a total length of 30.50mm and a pitch of 2.54mm. The pogo pins are made of environmentally friendly brass C6801 with a gold-plated surface for corrosion and wear resistance. The plastic housing is made of HTN UL94 V-0 environmentally friendly material and complies with ROHS and REACH environmental standards.

Product Parameters

Product model	RM-1049-5 pin
Mechanical
Contact force	70g±20g at 1.0 mm working stroke
Life test	10,000 cycles
Electrical
Rated voltage	DC 12V
Rated current	2A Max
Contact resistance of spring pin	50 milliohm Max
Materials
Operating Temperature	-25℃ to +80℃
Pogo pin	Gold-plated brass
Housing	HTN
Magnet	N52
Packing	PE bag / reel packing
Material and coating conform to ROHS and REACH standards

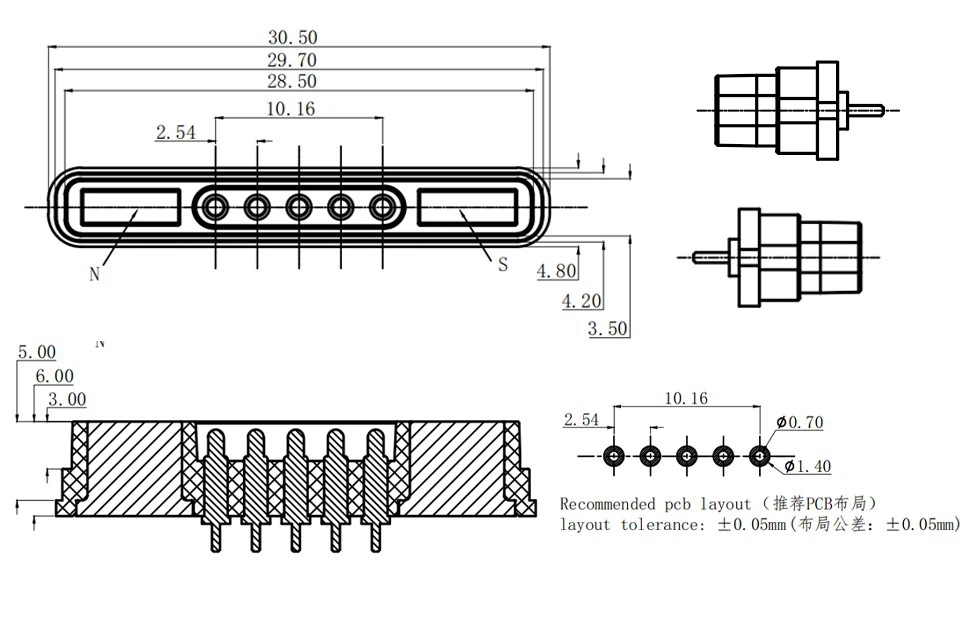

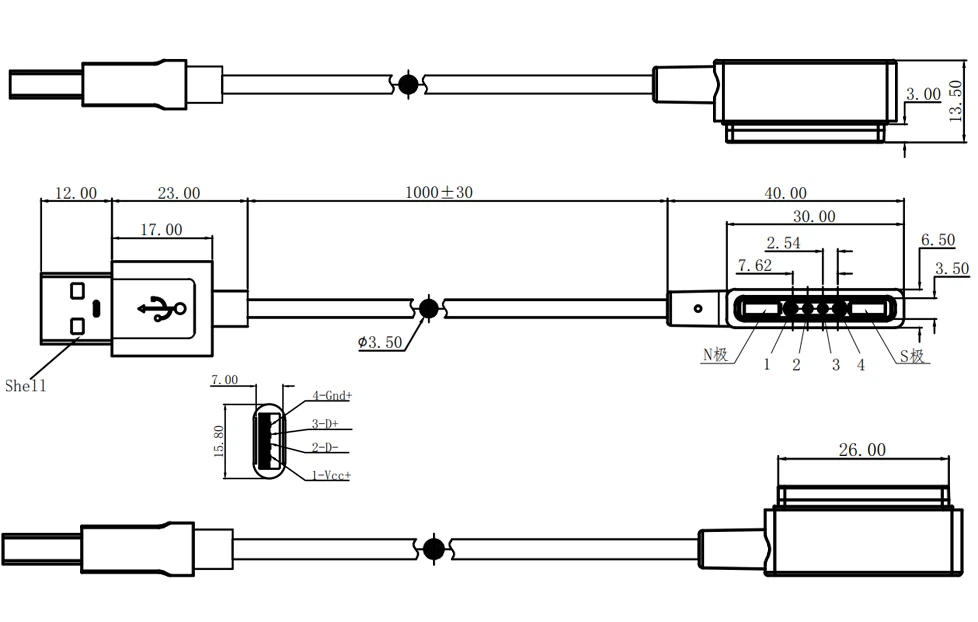

magnetic connector pCB drawing

RC-1049-A04-32

RM-1049-B05-21

RM-1049-A05-11

Advantages of Xinteng Magnetic pogo pin

Magnetic connectors consist of pogo pins, high-temperature resistant insulating plastic, and ruthenium iron boron permanent magnets to ensure a reliable and secure connection between the male and female parts.
Sinten has been dedicated to the customization of magnetic pogo pins. Combining its proprietary pogo pin connector technology, Sinten has accumulated over 2000 design solutions, covering nearly 500 products across more than 200 fields.
Magnetic pogo pin connectors overcome the shortcomings of traditional connectors, offering advantages such as convenient insertion and removal, safety, corrosion resistance, high reliability, small size, easy cleaning, and lateral pull-out. They achieve 100% automatic positioning, automatic connection, quick insertion and removal, external force separation, and forced disconnection functions, while also protecting the connection port from damage.

Our Services

Pre-sales service

24-hour online, providing one-stop solution service based on customer demand analysis and solutions.

In-sales

Fully automatic + manual double inspection of shipment, on-time delivery, quality assurance.

After-sales

Providing technical support services and product installation consulting services.

FAQ

Q: What current can this Magnetic Connector PCB handle?

A: This connector can withstand a maximum current of 2A.

Q: How do I clean the magnetic connector PCB?

A: Cleaning the magnetic charging connector is simple. Simply wipe the connector gently with a clean, soft cloth to remove dust and stains.

Q: Is the magnetic connector PCB easily damaged?

A: The magnetic connector is designed to be more durable than traditional plug-and-socket connectors because it reduces the friction and wear associated with traditional plug-and-socket operations.
