Right Angle Pogo Pins

This pogo pin has passed 10,000 cycles of life testing and a 48-hour smoke test at 12V DC at 1A. Its single-pin impedance is less than 50 milliohms, and its tip diameter is 0.9mm. Available in DIP, SMT, and foldable styles, the pogo pin's gold plating is waterproof and corrosion-resistant, and both the raw materials and the gold plating comply with ROHS and REACH environmental standards.

Send Inquiry

Product Introduction

Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of right angle pogo pins in China, featured by quality products and good service. Welcome to wholesale bulk durable right angle pogo pins in stock here from our factory. Also, customized service and OEM&ODM service are available.

Right Angle Pogo Pins

Our engineers have designed a highly reliable Pogo Pin connection solution. This solution has undergone rigorous lifespan testing and has been proven to withstand over 10,000 plug-in and unplug cycles while maintaining smooth spring action and excellent conductivity. It has also passed a 48-hour salt spray test, demonstrating excellent corrosion resistance and maintaining excellent contact quality even under prolonged exposure to humid or harsh environments.

In terms of performance, this Pogo Pin supports a DC 12V, 1A operating current, with a single-pin contact impedance of less than 50 milliohms, ensuring stable signal transmission with low loss. The 0.9mm pin diameter provides both electrical conductivity and excellent mechanical strength and vibration resistance, making it suitable for high-frequency connection requirements in precision electronics, wearable devices, and small instruments.

In addition, we offer a variety of configurations, including DIP, SMT, and foldable, allowing customers to easily match their installation space and board design. Each configuration has been repeatedly validated, ensuring reliable connection solutions for both mass production and custom projects.

Product Parameters

Product model	RG-1339
Mechanical
Contact force	60g±20g at 1.4mm working storke Full storke 1.6mm
Life test	10,000 cycles
Electrical
Rated voltage	DC 12V
Rated current	1A Max
Contact resistance of spring pin	50 milliohm Max
Environmental performance
Operation Temperature	-25℃ to +60℃
Salt Spray	48H
Packing	PE bag / reel packing
Material and coating conform to ROHS and REACH standards

Right Angle Pogo Pins Product details

This small pogo pin has a 0.9mm tip diameter, 8.6mm total height, and a 3mm pin height (the pin shape and size can be changed as needed). Available in DIP, SMT, and right-angle configurations, the pogo pin has a contact force of 60g±20g at a working pressure of 1.4mm and a maximum travel of 1.6mm.

RG-1339-13P

DONGGUAN XINTENG ELECTRONICS CO., LTD

Dongguan Xinteng Electronics Co., Ltd. is a leading high-reliability Pogo Pin connector solution provider in China, integrating R&D, production and sales. The factory covers an area of 2,700 square meters. The R&D team composed of 15 experienced engineers focuses on special scenarios such as innovation, miniaturization, high current, waterproof performance, high corrosion, and long life.

The factory and integrated automated assembly provide cutting-edge connection technology for automotive electronics, Internet of Things, consumer electronics, medical beauty equipment and other fields, and promote global technological innovation.

Why Choose Us

24-hour Quick Response, Small Order Capabilities

Dongguan Xinteng Electronics Co., Ltd. offers 24-hour response times and supports small order quantities.

Integrated Solution Capabilities

We not only sell standard Pogo pins and connectors, but also customize Pogo pins and connectors, providing complete solutions. We can assist with mold production, tooling, and provide testing process recommendations. We are a solutions manufacturer with integrated capabilities.

Solid Structural Engineering Experience

When designing connectors, we focus not only on electrical parameters but also on structural reliability, such as pin offset correction, copper thermal expansion compensation, and solder leg height control for automated placement.

our services

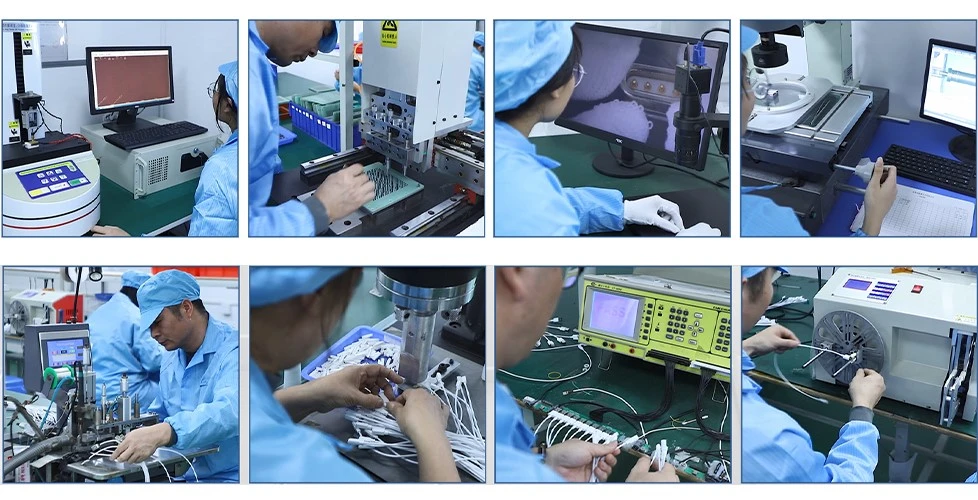

Production Equipment

60 automatic lathes, 6 manual punching machines, 5 UV equipment, 5 semi-automatic filling machines, 3 wire cutting machines, 5 ultrasonic machines, 3 packaging machines, 5 stranding machines, 6 vertical forming machines, 4 riveting machines, 3 pneumatic stripping machines, 4 pneumatic special machines, 1 wire testing machine, 3 chamfering machines, 2 wire bundling machines, 3 bending machines, 8 semi-automatic welding machines, 6 riveting machines, 1 life test equipment

product-1-1

Our Service

Pre-sales service

24-hour online, providing one-stop solution service based on customer demand analysis and solutions.

In-sales

Fully automatic + manual double inspection of shipment, on-time delivery, quality assurance.

After-sales

Providing technical support services and product installation consulting services.

FAQ

Q: Why do some right-angle pogo pins require protective covers?
A: Protective covers prevent accidental contact, bending, and dust contamination during insertion and removal. Especially in test fixtures or in frequent use, protective covers can significantly extend the lifespan. Some pogo pins are designed with caps to protect the pins from damage caused by external forces.

Q: Why are right-angle Pogo pins more commonly used in automotive systems?

A: From a structural perspective, right-angle Pogo pins shift the connection from vertical to horizontal. This means the module can be placed close to the edge of the motherboard or the side of the housing, eliminating the need for additional height clearance. For example, in locations like central control screens, camera modules, and radar sensor systems, installation space is often limited and wiring is dense. Traditional straight pins often require wiring to be "folded back" or occupy additional space, while right-angle pins allow for smoother routing, resulting in neater wiring and a more compact design. They also offer improved vibration resistance. Vibration is inevitable during vehicle operation, and vertical pins can easily bounce up and down during this vibration, leading to unstable contact over time. Right-angle Pogo pins, by conducting lateral force, can mitigate this effect to a certain extent, maintaining a more secure contact. The right-angle design offers enhanced stability, especially in conditions of high temperature, high humidity, or constant vibration.

Q: The pogo pins are not at the same height after installation. What's the problem?
A: This may be due to insufficient mounting hole precision. You need to adjust the mounting hole size or choose a model with fine-adjustable height.

Q: Can we customize high-voltage Pogo pins? If so, what's the maximum voltage?
A: Of course. Our standard voltage is 120V, but we can customize it to 500V or higher based on your needs.

Q: How long does it take to customize a pogopin sample?

A: Standard custom prototype samples are usually ready within 4 to 7 working days, and 3D models are provided within 24 hours.
