What are the requirements for the materials and plating of pogo pins intended for use in harsh outdoor environments?

Alice Smith
Alice Smith
Alice is a senior R&D engineer at Dongguan Xinteng Electronics Co., Ltd. With over 8 years of experience in the field of Pogo Pin connectors, she specializes in the research of high - current and miniaturization scenarios. She has contributed to many of the company's patented products and more than 300 solutions.

Outdoor environments subject connectors to thermal cycling, humidity, condensation, salt spray, UV exposure, particulate contamination, and corrosive industrial gases. Achieving five-year service life demands systematic material engineering where the spring substrate, conductive plunger, and plating system function as an integrated corrosion barrier-not merely individual components.



Internal Spring Substrate Selection

The spring wire represents the primary mechanical failure point. For standard outdoor applications requiring stable contact resistance, C17200 beryllium copper in age-hardened condition provides superior elastic stability with minimal stress relaxation. However, this alloy exhibits vulnerability to stress corrosion cracking in ammonia-rich or high-humidity environments, necessitating complete encapsulation by subsequent plating layers.

For coastal installations or industrial zones with sulfur compounds, 17-7PH precipitation-hardening stainless steel becomes the preferred substrate. This alloy withstands continuous exposure to 250°C while resisting chloride-induced stress corrosion. The trade-off involves electrical conductivity: stainless steel springs function purely as mechanical elements, with current transmission occurring exclusively through the plunger and barrel assembly.



Avoid standard 304 stainless steel for long-duration applications. Cold-worked 304 exhibits excessive stress relaxation under sustained compression, resulting in 15–20% force loss within the first year-unacceptable for maintaining reliable electrical contact.



Conductive Substrate (Plunger and Barrel)

Brass C2680 or C2700 serves as the standard base material for current-carrying components, offering excellent machinability and moderate cost. For thin-wall geometries requiring additional structural resilience, phosphor bronze C5191 provides superior substrate corrosion resistance. Direct stainless steel utilization for conductive elements remains discouraged due to high contact resistance and poor plating adhesion characteristics.



Multi-Layer Plating Architecture

Single-layer gold plating proves insufficient for harsh outdoor deployment. Microporosity in thin gold deposits (less than 0.2 μm) creates galvanic cells that accelerate substrate corrosion and blistering. The standard architecture requires:

Base nickel layer (2–4 μm): Provides adhesion and diffusion barrier

Palladium-nickel intermediate layer (0.5–1.2 μm): Critical for salt spray resistance; superior to pure nickel in preventing sulfur and chloride penetration



Gold surface layer (0.05–0.1 μm): Ensures low contact resistance and lubricity for mating cycles

This Ni/PdNi/Au system withstands 1000+ hours neutral salt spray testing for marine environments, while a simplified nickel/thick gold construction (≥0.2 μm Au) suffices for moderate industrial exposure but risks micropore corrosion in coastal installations.

Prohibited finishes include pure nickel plating, thin gold flash (<0.03 μm), and tin plating. Tin oxidizes and sulfidizes in outdoor conditions, causing contact resistance escalation and eventual signal failure.

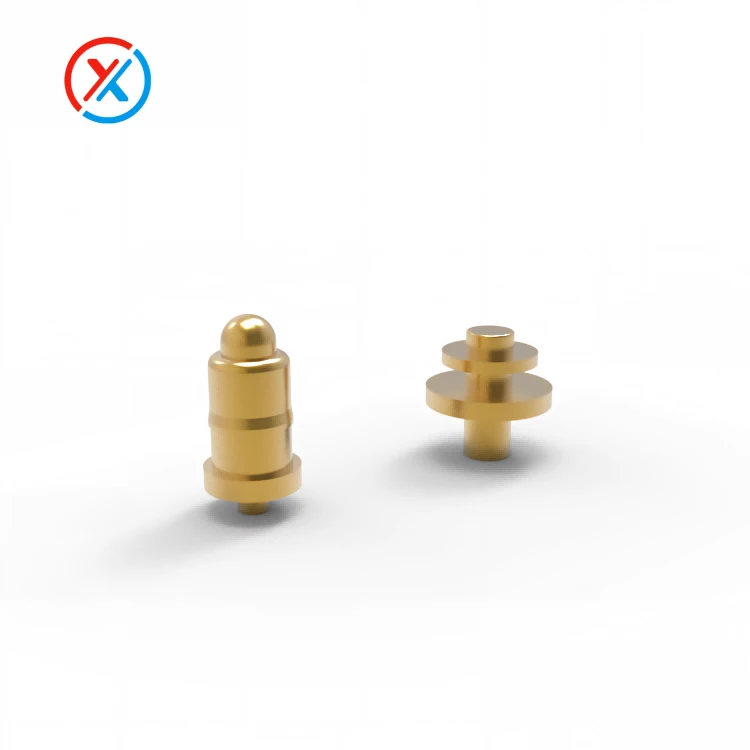

micro pogo pins1

Verification Protocols and System Design

Qualification testing must demonstrate 500 hours minimum salt spray resistance for general outdoor use (1000 hours for coastal), with contact resistance variation under 10 milliohms. Thermal cycling between -40°C and 125°C for several hundred cycles must not induce plating blistering or delamination. Abrasion testing should confirm the precious metal layer survives minimum 5,000 mating cycles without exposure of underlying layers.

Material selection alone cannot guarantee longevity. Structural design must incorporate drainage channels to prevent condensation accumulation, dry film lubrication (molybdenum disulfide or carbon-based) rather than liquid greases that attract particulates, and spring compression limits operating at 70–80% of maximum deflection to minimize stress relaxation. For assemblies exceeding 120°C continuous operation, specify 17-7PH springs exclusively, as beryllium copper undergoes accelerated relaxation above this threshold.



FAQ

Q1: Can I specify the same spring material for the contact element and the mechanical spring?

No. The spring functions as a mechanical force element, while the plunger and barrel handle current transmission. Using beryllium copper for the spring provides optimal elastic performance but requires complete plating coverage to prevent environmental attack. Using stainless steel for the spring sacrifices conductivity but eliminates corrosion concerns. Never use stainless steel for the conductive plunger due to excessive contact resistance.



Q2: Why does palladium-nickel plating outperform pure gold in salt spray environments?

Palladium-nickel alloys (typically 80% Pd, 20% Ni) exhibit significantly lower porosity than pure gold deposits of equivalent thickness. The palladium layer acts as a diffusion barrier preventing nickel migration and substrate corrosion, while demonstrating superior resistance to sulfur compounds common in industrial atmospheres. The thin gold overlayer maintains surface conductivity without compromising the corrosion barrier beneath.



Q3: What temperature limitations apply to these material systems?

Beryllium copper springs operate reliably to 120°C continuous; beyond this, stress relaxation accelerates exponentially. The 17-7PH stainless springs maintain mechanical properties to 250°C. However, the complete assembly-including plastic housings and adhesives-must match these ratings. Standard epoxy adhesives fail below 150°C, requiring high-temperature formulations for elevated applications.



Q4: How do I validate that a supplier's plating meets these specifications?

Request cross-sectional metallography reports verifying layer thicknesses and porosity levels. Specify salt spray testing per ASTM B117 or IEC 60068-2-11 with post-test contact resistance measurement. For critical applications, we perform incoming inspection and sample testing on custom-fabricated connector assemblies, verifying that delivered components match specified plating architectures and thicknesses. Send us your environmental specifications and mating cycle requirements for material selection review and prototype validation.
