6 Pin Magnetic Connector

Dongguan Xinteng Electronics Co., Ltd. is one of the most reliable manufacturers and suppliers of 6 pin magnetic connector in China, featured by quality products and good service. Welcome to wholesale bulk durable 6 pin magnetic connector in stock here from our factory. Also, customized service and OEM&ODM service are available.

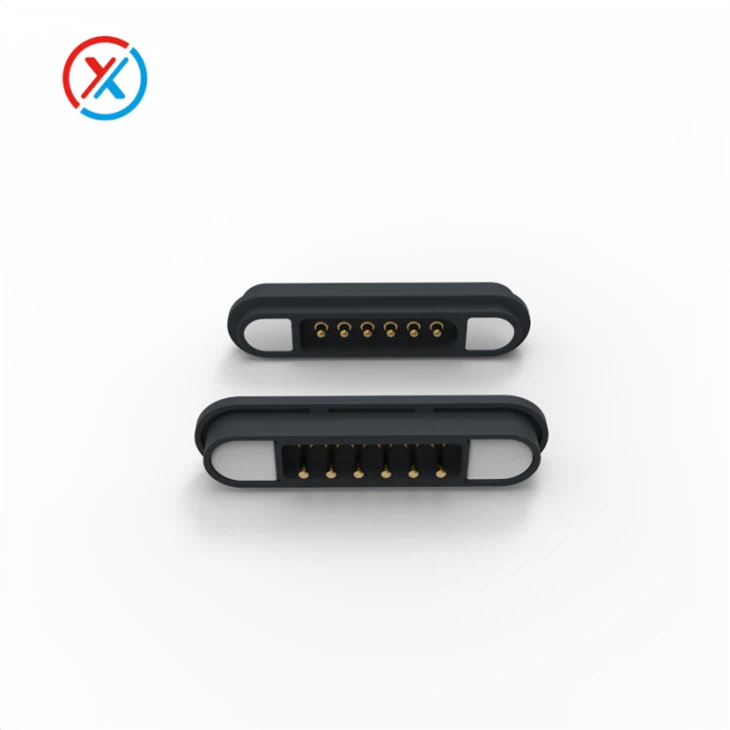

Hello everyone, as a supplier of pogo pin magnetic connectors, we'd like to introduce a product that's been receiving a lot of customer inquiries recently: the SM-100 magnetic connector. The female magnetic connector is typically mounted on a device, while the male magnetic connector is used as a charging cable for data transmission.
female connector：The magnets are not exposed, and the outer shell is coated with waterproof adhesive to achieve an IP68 rating, meaning it can be fully submerged in water, making it suitable for use in equipment that needs to be submerged in water, such as food washers.
This male magnetic connector can handle a maximum current of 3A, but continuous operation at 3A is not recommended to prevent overheating and failure. It also has a service life of 10,000 cycles and has passed a 24-hour salt spray test. Our company sources halogen-free, lead-free, and ROHS and REACH-compliant raw materials. We are committed to producing high-quality products and provide excellent sales and after-sales service.

Let's start with the details of this 6 pin magnetic connector. The pogo pins are made of C6801 brass with a gold electroplating. The magnets are made of N52 neodymium iron boron with a nickel electroplating. The insulating plastic shell is black HTN UL94 V-0 material, both halogen-free and lead-free.

Next, let's look at the dimensions of the 6-pin magnetic connector. The total length is 28.90mm and the total width is 7.50mm. The pogo pins can be configured as DIP or right-angle bends, and the pin spacing is 2.20mm.

• Mating Cycle Test:

A high-frequency mating cycle test is performed using laboratory equipment to simulate connection and disconnection conditions in real-world use. This test primarily evaluates the mechanical durability of the magnetic connector. The test requires the connector to continue functioning normally after reaching the target number of mating cycles (10,000 cycles for a 6-Pin Magnetic Connector).

• Environmental Tolerance Test:

Environmental tolerance testing involves experimental simulations of environmental factors such as temperature cycling, humidity, salt spray, and UV exposure to assess the durability of connectors under extreme environmental conditions.

Temperature Cycling: Depending on the application environment, connectors are exposed to temperatures ranging from -25°C to 80°C to test whether they can perform as expected under these high and low temperature fluctuations.

Salt Spray Test: Using a salt spray tester, connectors are placed in salt for 48 hours before being removed and evaluated for corrosion resistance.

• Electrical Performance Testing:

Evaluate the stability of a connector's electrical performance by testing its current carrying capacity, voltage withstand capability, and contact resistance over time.

Testing may use standard current and voltage conditions to measure changes in conductivity and monitor for electrical faults.
